Brake Control System (VDC/TCS/Abs)
>>
Unit Removal And Installation
>>
Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

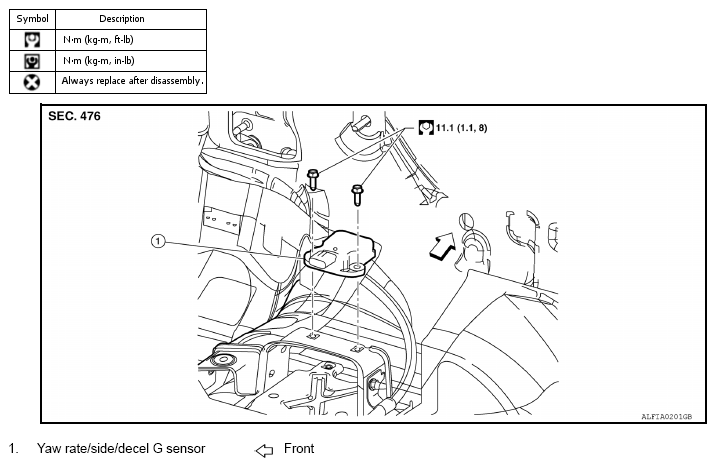

Fig 1: Yaw Rate/Side/Decel G Sensor And Mounting Bolts With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
