Component Parts Location

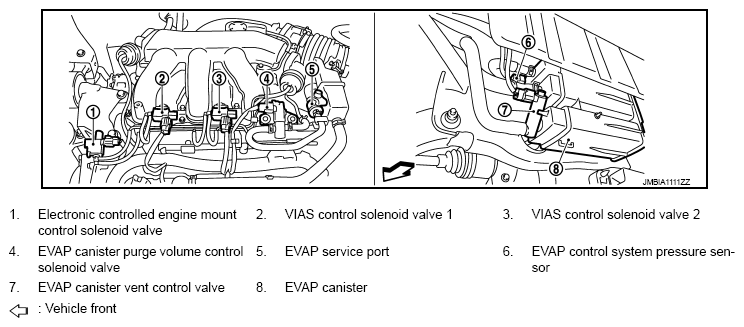

Fig 1: Evaporative Emission System Component Parts Location (1 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

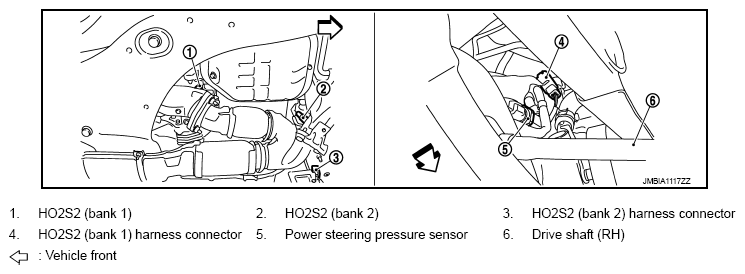

Fig 2: Evaporative Emission System Component Parts Location (2 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

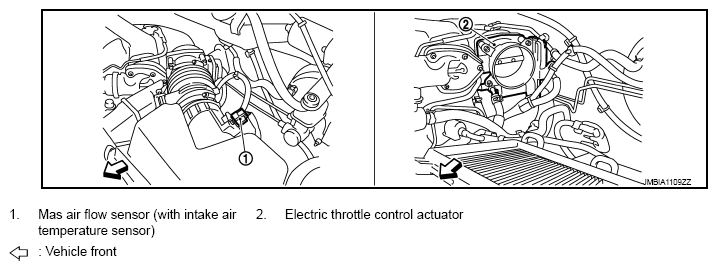

Fig 3: Evaporative Emission System Component Parts Location (3 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

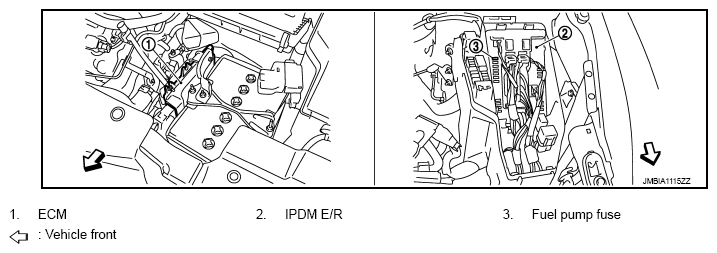

Fig 4: Evaporative Emission System Component Parts Location (4 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

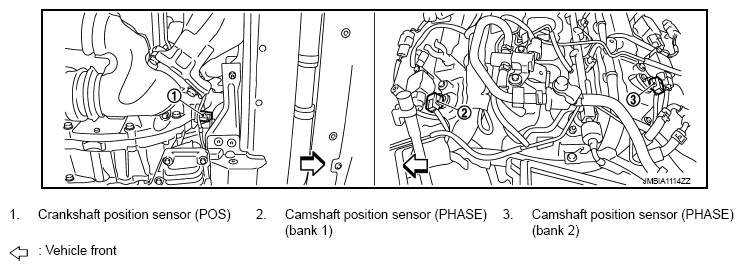

Fig 5: Evaporative Emission System Component Parts Location (5 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

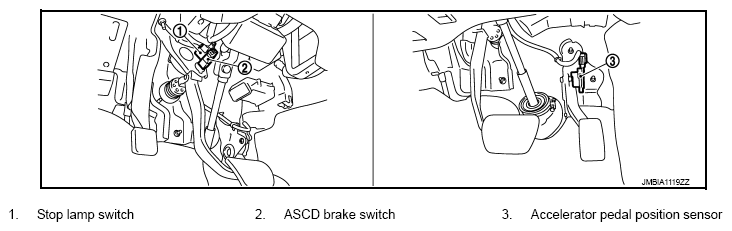

Fig 6: Evaporative Emission System Component Parts Location (6 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

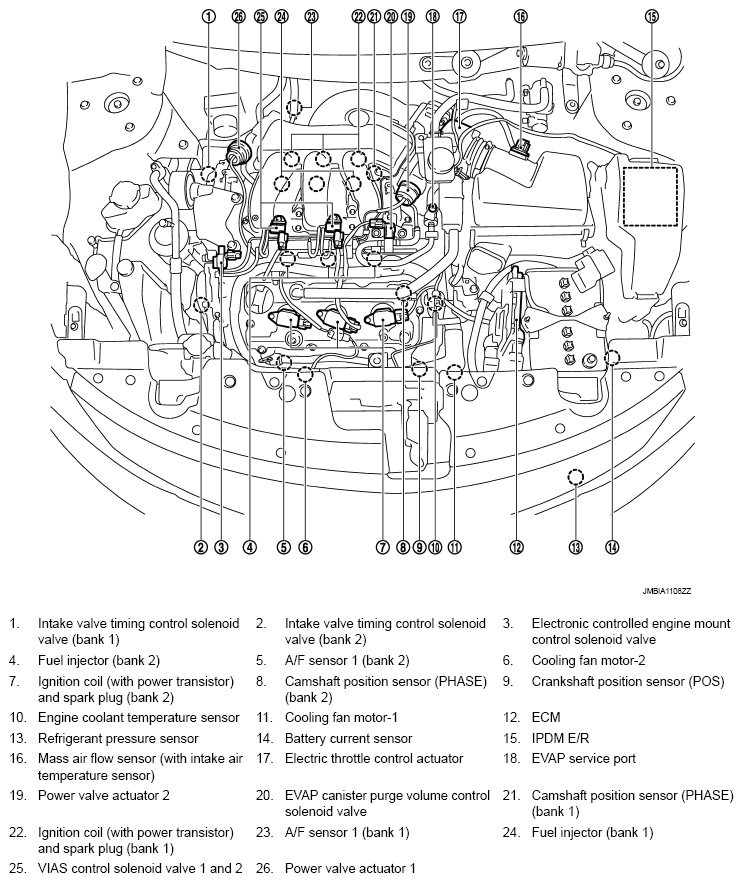

Fig 7: Evaporative Emission System Component Parts Location (7 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

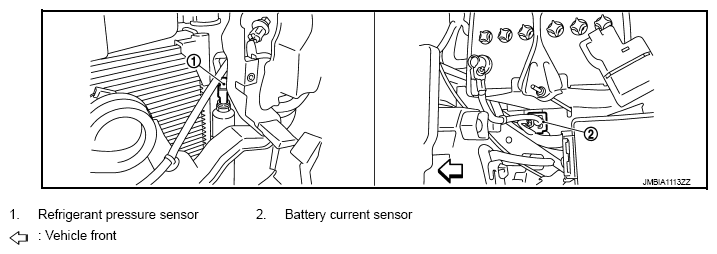

Fig 8: Evaporative Emission System Component Parts Location (8 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

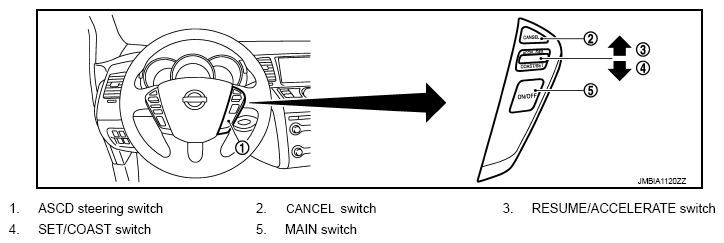

Fig 9: Evaporative Emission System Component Parts Location (9 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

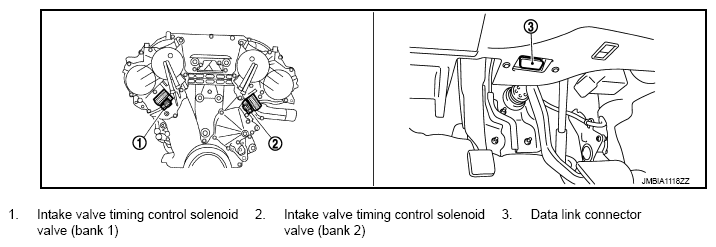

Fig 10: Evaporative Emission System Component Parts Location (10 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

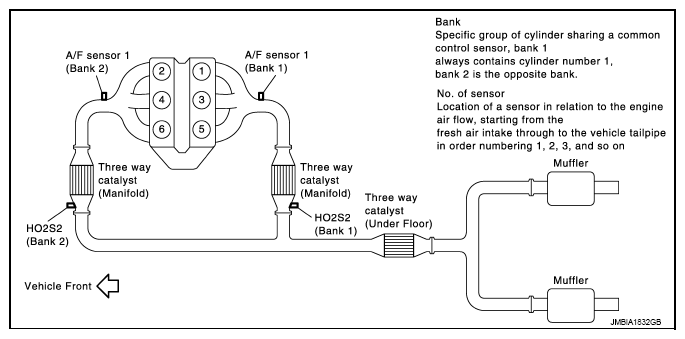

Fig 11: Evaporative Emission System Component Parts Location (11 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

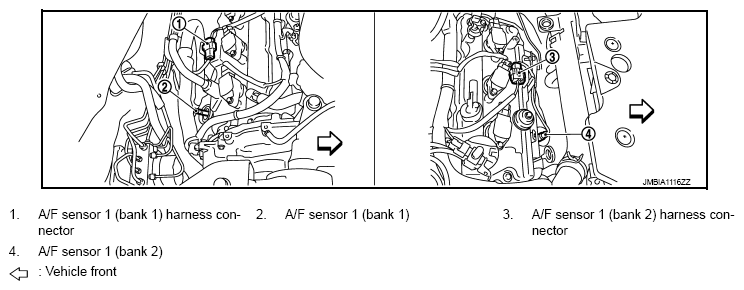

Fig 12: Evaporative Emission System Component Parts Location (12 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

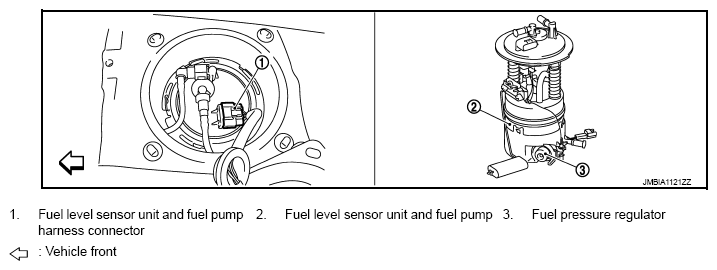

Fig 13: Evaporative Emission System Component Parts Location (13 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

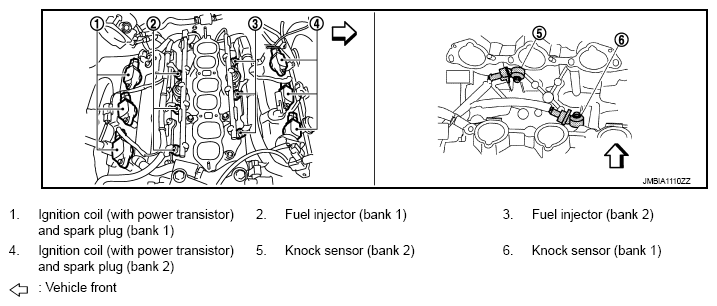

Fig 14: Evaporative Emission System Component Parts Location (14 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.

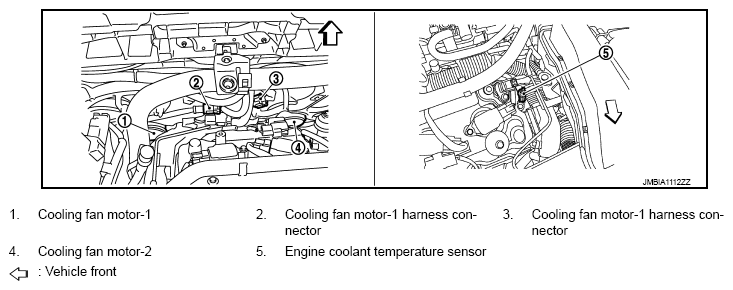

Fig 15: Evaporative Emission System Component Parts Location (15 Of 15)

Courtesy of NISSAN NORTH AMERICA, INC.
