Component Parts Location

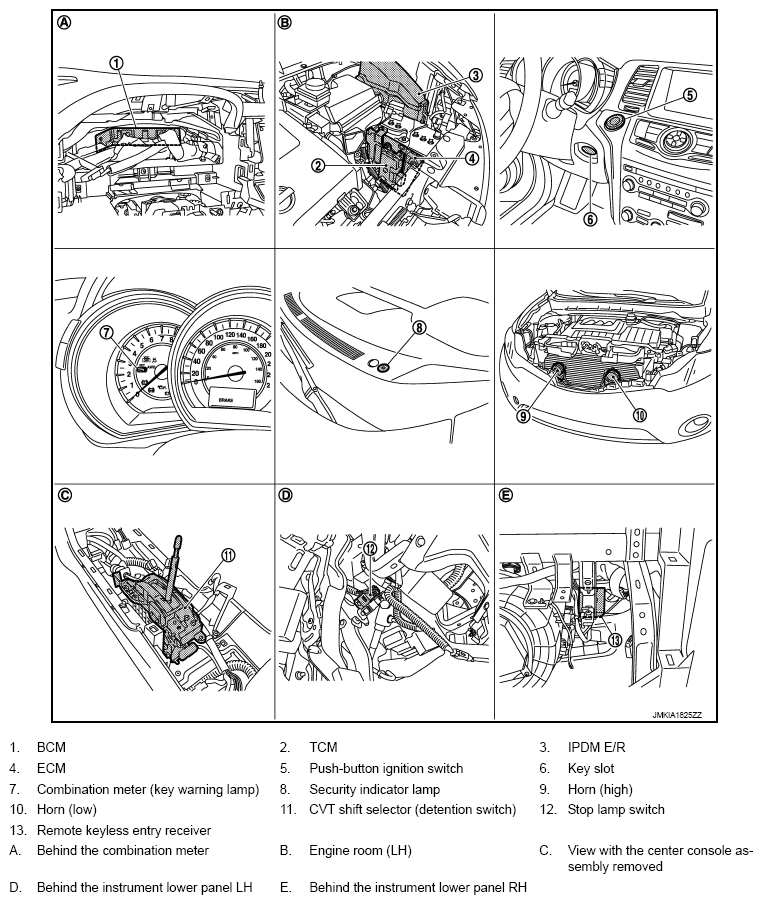

Fig 1: Intelligent Key System/Engine Start Function Components Location (1 Of 2)
G08480501Courtesy of NISSAN NORTH AMERICA, INC.

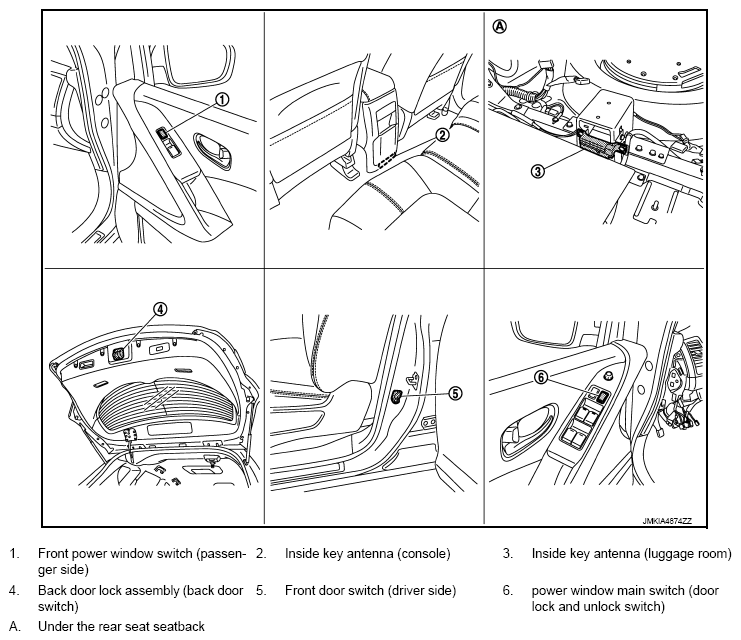

Fig 2: Intelligent Key System/Engine Start Function Components Location (2 Of 2)
G08480502Courtesy of NISSAN NORTH AMERICA, INC.
