System - Basic Engine Control System

WARNING: This page is about a different variant/trim than selected.

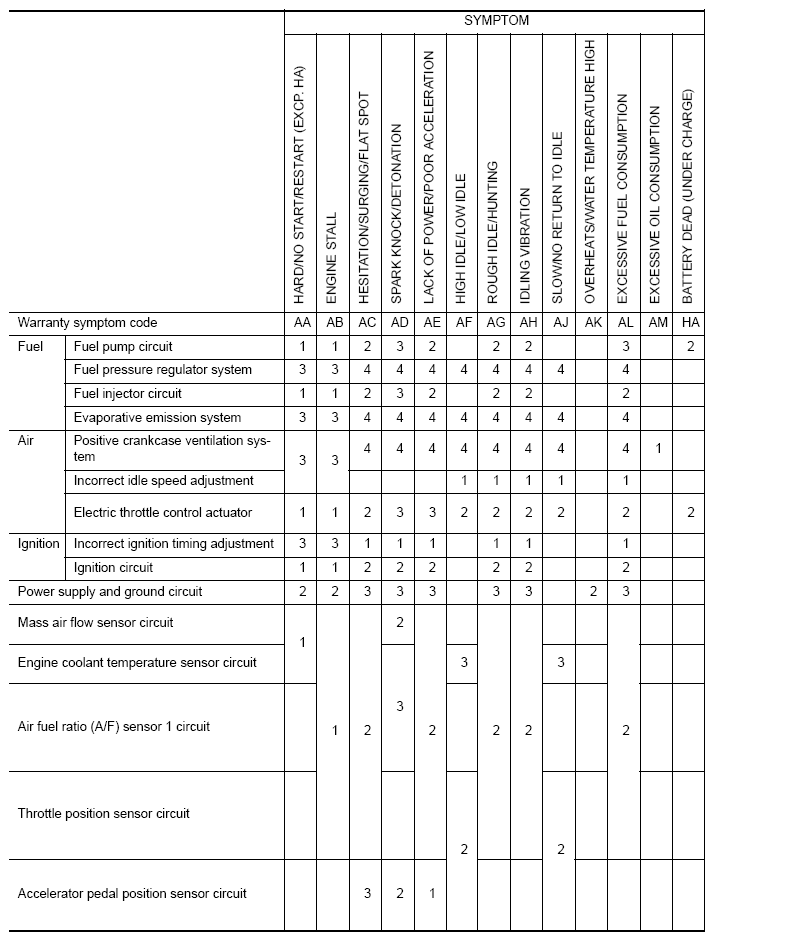

Fig 1: Basic Engine Control System Symptoms Chart (1 Of 2)
G08428942Courtesy of NISSAN NORTH AMERICA, INC.

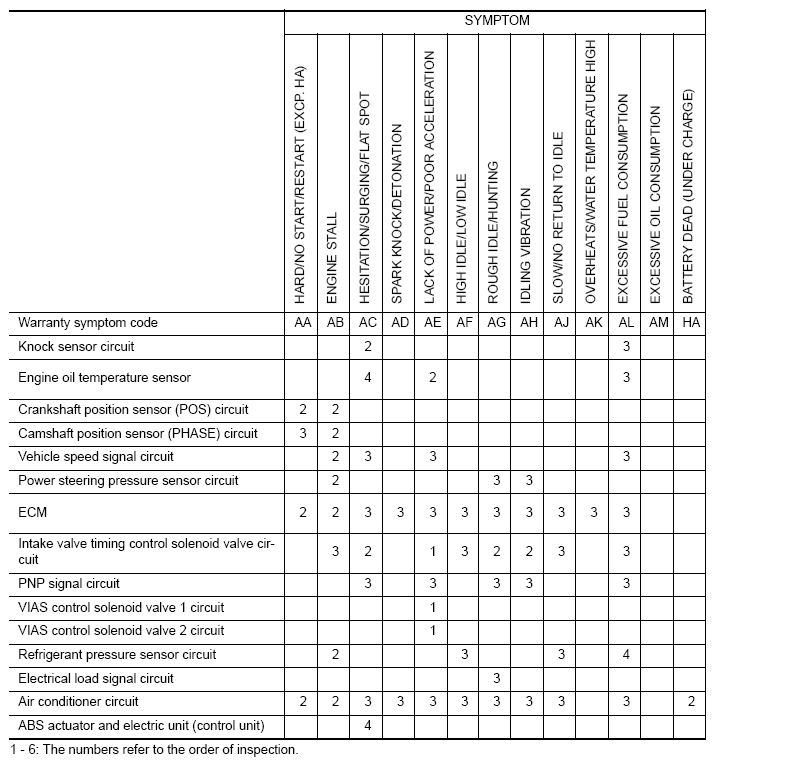

Fig 2: Basic Engine Control System Symptoms Chart (2 Of 2)
G08428943Courtesy of NISSAN NORTH AMERICA, INC.
