Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Steering Control System (CROSSCABRIOLET)
>>
System Description
>>
System
>>
EPS System
>>
EPS SYSTEM: System Diagram
>>
Cross-Sectional View
Cross-Sectional View

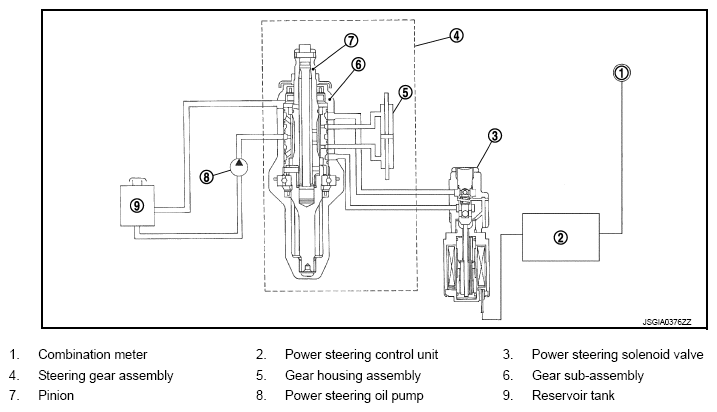

Fig 1: Cross-Sectional View Of EPS System
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
