Inspection After Installation

After inserting a torque converter to transaxle assembly, check dimension (A) is within the reference value limit.

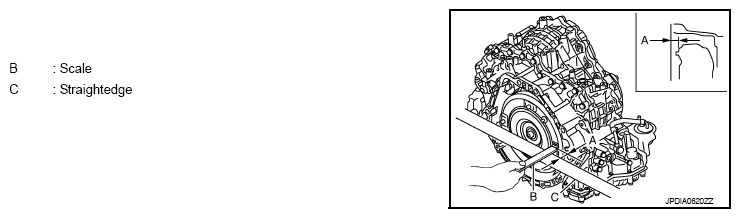

Fig 1: Checking Torque Converter And Transaxle Assembly Dimension Using Scale And Straightedge

Courtesy of NISSAN NORTH AMERICA, INC.

Dimension A :  Refer to "TORQUE CONVERTER ".
