SRS Air Bag System
>>
SRS Component Parts Location
SRS Component Parts Location

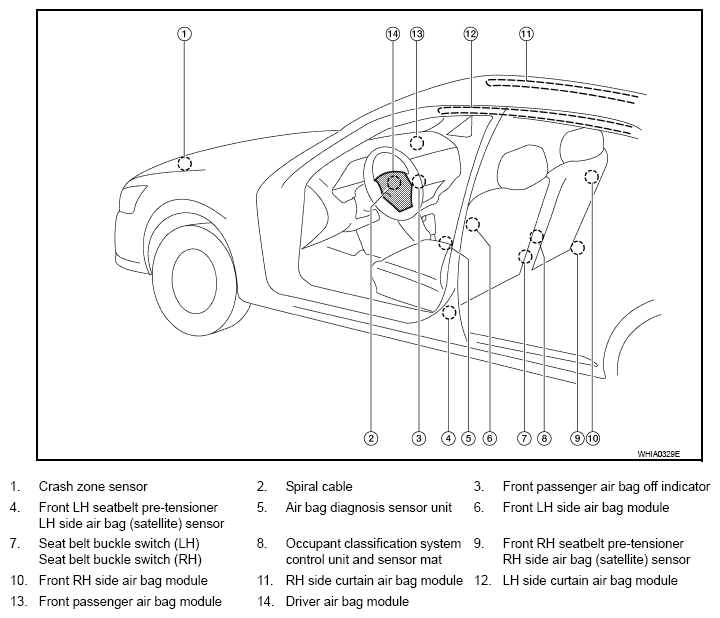

Fig 1: SRS System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
