Nissan-Datsun
>>
2012
>>
Maxima S
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Paddle Shifter
>>
Exploded View
Exploded View

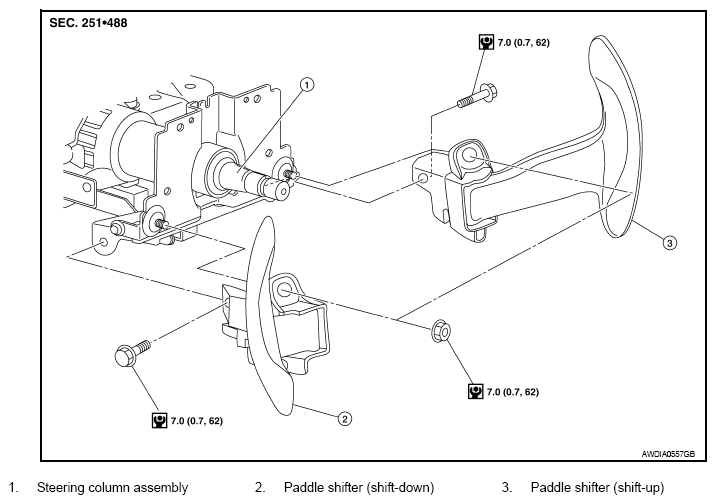

Fig 1: Exploded View Of Paddle Shifter With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
