Home >> Nissan-Datsun >> 2012 >> Maxima S >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System >> Removal And Installation >> Telescopic Motor >> Exploded View

Exploded View

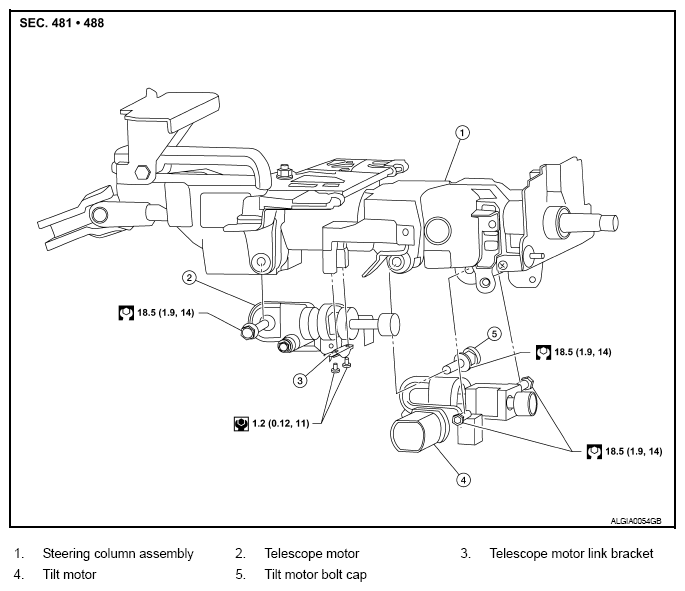

Fig 1: Exploded View Of Telescopic Motor With Torque Specifications

G08146586

Courtesy of NISSAN NORTH AMERICA, INC.
