Control System Connector Terminal Identification

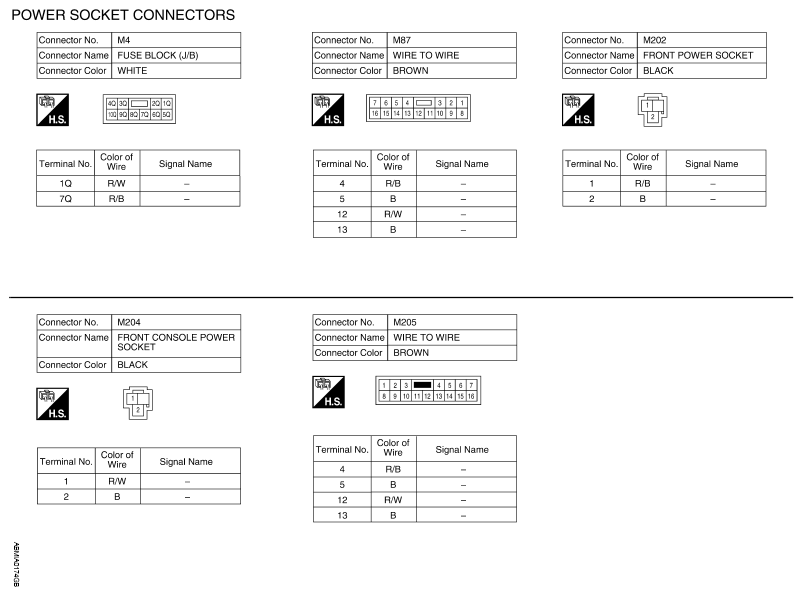

Fig 1: Identifying Power Socket Connectors Terminals

G05878757

Courtesy of NISSAN NORTH AMERICA, INC.
