Power Window System: Wiring Diagram

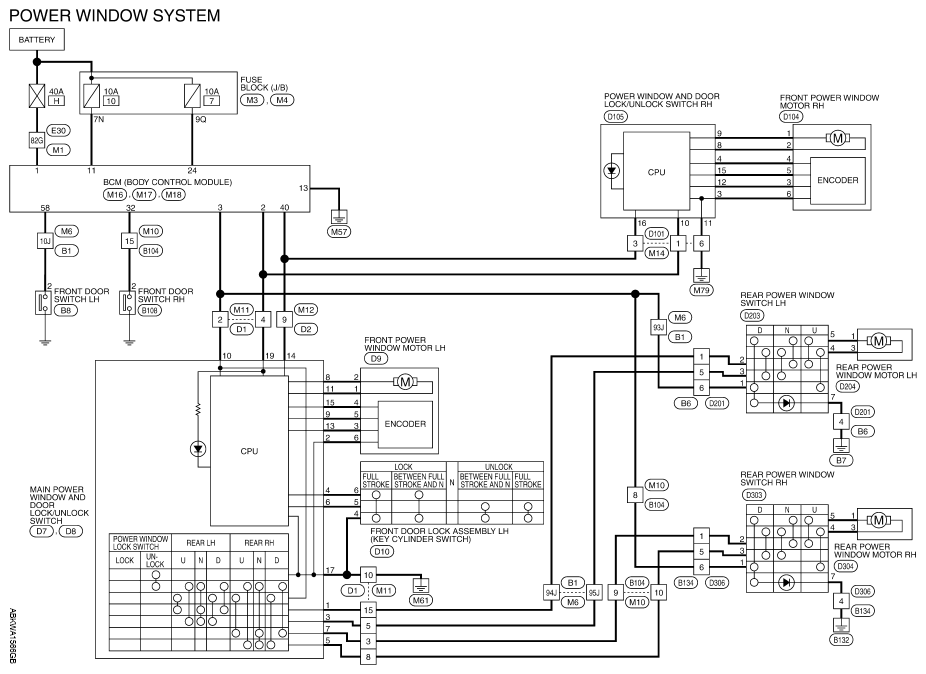

Fig 1: Power Window System Wiring Diagram

G08149172

Courtesy of NISSAN NORTH AMERICA, INC.
