Combination Meter: Notes

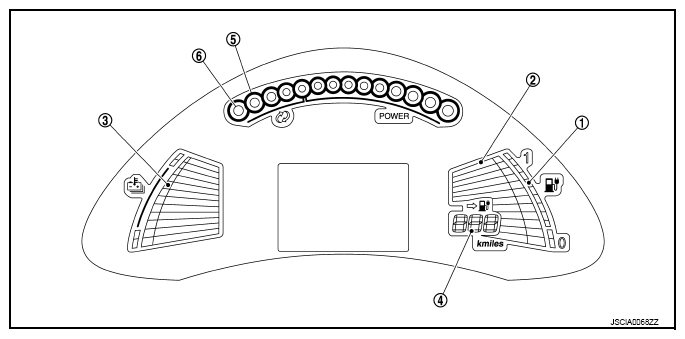

Fig 1: Identifying Combination Meter
G08138181Courtesy of NISSAN NORTH AMERICA, INC.

VCM controls the following items on the combination meter in addition to the warning lamps and indicator lamps.
