Outside Mirror
>>
Exploded View
Exploded View

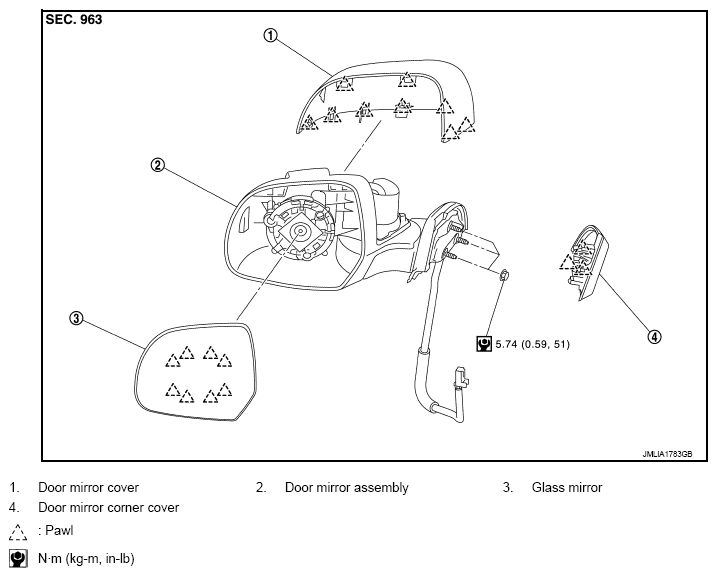

Fig 1: Exploded View Of Outside Mirror With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
