Nissan-Datsun
>>
2012
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Front Suspension
>>
Removal And Installation
>>
Transverse Link
>>
Exploded View
Exploded View

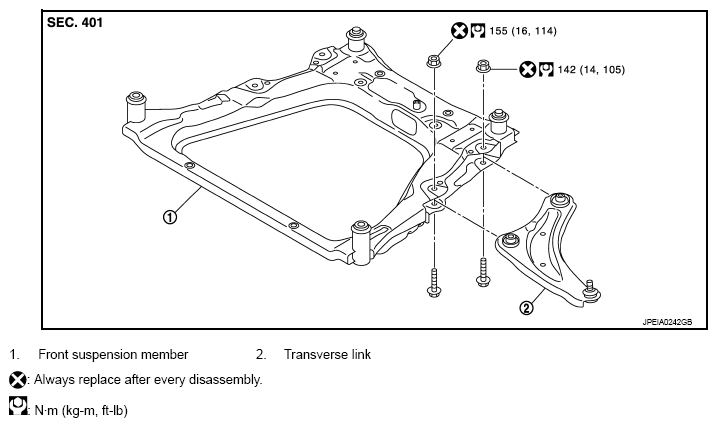

Fig 1: Transverse Link And Front Suspension Member With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
