Disassembly and Assembly: Assembly

CAUTION: Never damage strut assembly piston rod when installing components from strut assembly.

Install strut attachment [SST: ST35652000 (-)] to strut and secure it in a vise.
CAUTION: When installing the strut attachment to strut assembly, wrap a shop cloth around strut to protect from damage.
Install lower rubber seat.
Compress coil spring using a spring compressor (commercial service tool), and install it onto strut assembly.
CAUTION:
- Be sure a compressor is securely attached to coil spring. Compress coil spring.
- Be careful with the vertical direction of the coil spring.

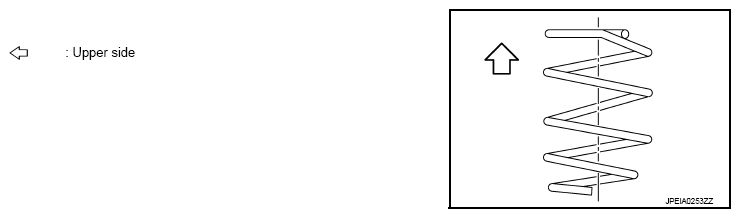

  Fig 1: Identifying Coil Spring
  Courtesy of NISSAN NORTH AMERICA, INC.
- Align the lower end of coil spring (1) with (A) of lower rubber seat (2) as shown in the figure.
Apply soapy water to bound bumper.
CAUTION: Never use machine oil.
Insert bound bumper into mounting insulator.
Install mounting bearing.
CAUTION: Never apply oils, such as grease, when installing the mounting bearing.

Fig 2: Aligning Lower End Of Coil Spring With Lower Rubber Seat
Courtesy of NISSAN NORTH AMERICA, INC.
Check the location of identification mark (A) of the mounting insulator and install it with the arrow (B) faced outside of the vehicle to the strut.
NOTE: The identification mark "0" shows right mounting insulator and "1" shows left.

Fig 3: Identifying Identification Mark Of Mounting Insulator With Arrow
Courtesy of NISSAN NORTH AMERICA, INC.
Secure piston rod tip so that piston rod does not turn, then tighten piston rod lock nut with specified torque.
CAUTION: Never reuse piston rod lock nut.
Gradually release a spring compressor (A) (commercial service tool), and remove coil spring.
CAUTION: Loosen while making sure coil spring attachment position does not move.

Fig 4: Releasing Spring Compressor
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the strut attachment (A) [SST: ST35652000 (-)] from strut assembly.

Fig 5: Removing Strut Attachment From Strut Assembly

Courtesy of NISSAN NORTH AMERICA, INC.
