EVAP Canister Purge Volume Control Solenoid Valve

The EVAP canister purge volume control solenoid valve uses a ON/OFF duty to control the flow rate of fuel vapor from the EVAP canister. The EVAP canister purge volume control solenoid valve is moved by ON/OFF pulses from the ECM. The longer the ON pulse, the greater the amount of fuel vapor that will flow through the valve.

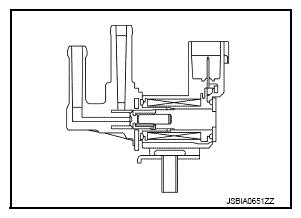

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve
G08096974Courtesy of NISSAN NORTH AMERICA, INC.
