Component Parts Location: Notes

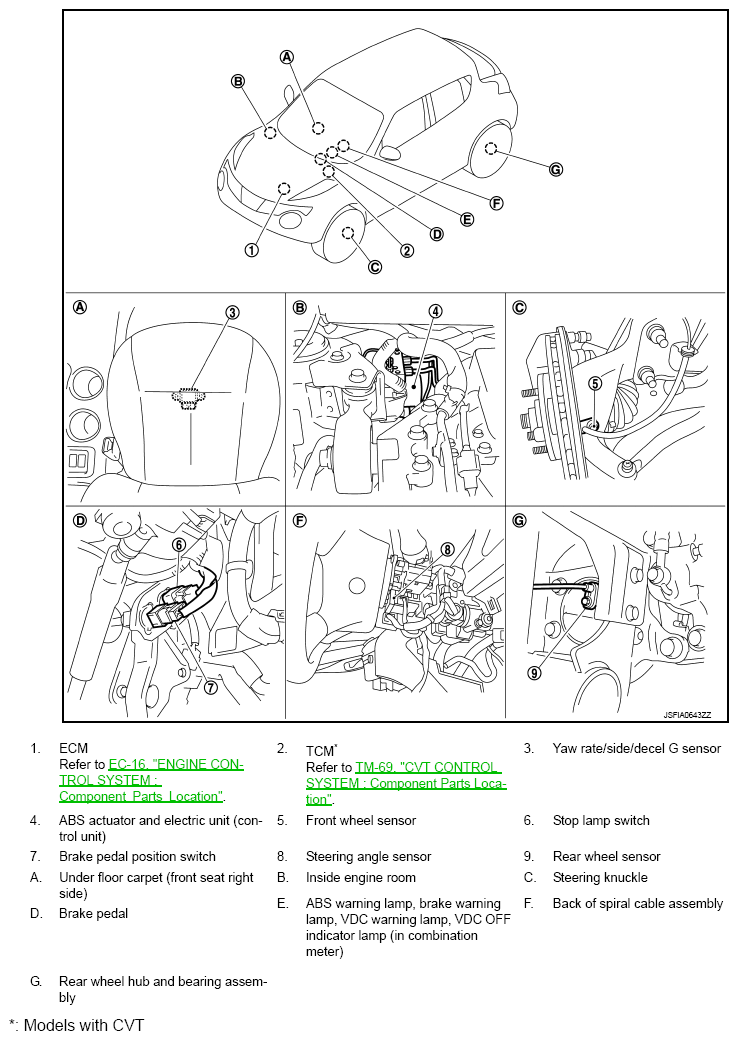

Fig 1: Brake Control System Components Location (2WD)

G08098232

Courtesy of NISSAN NORTH AMERICA, INC.
