LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2012
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Removal And Installation
>>
Front Seat
>>
Exploded View
>>
Driver Seat
Driver Seat

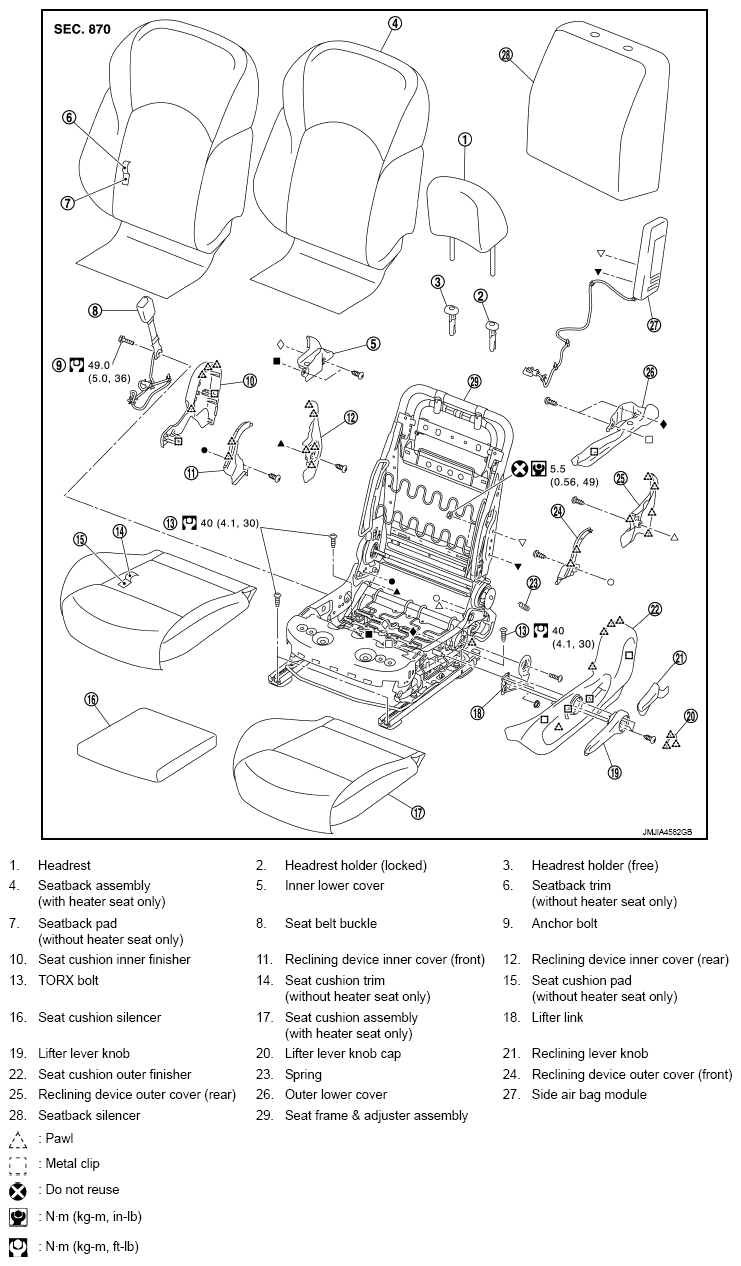

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver Seat)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
