Exploded View

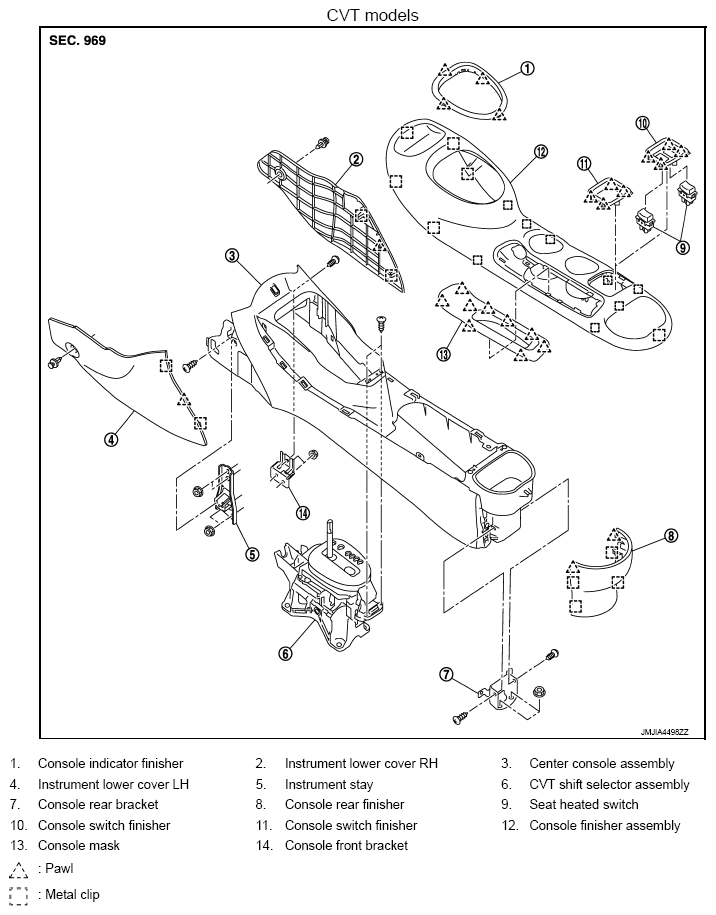

Fig 1: Exploded View Of Center Console Assembly (CVT Models)
G08098633Courtesy of NISSAN NORTH AMERICA, INC.

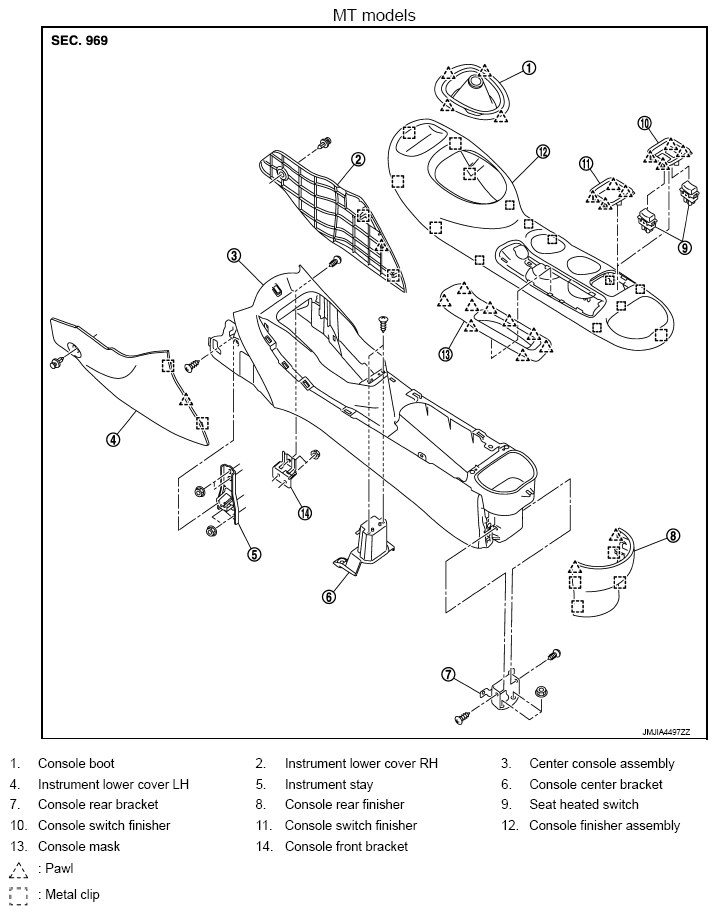

Fig 2: Exploded View Of Center Console Assembly (MT Models)
G08098634Courtesy of NISSAN NORTH AMERICA, INC.
