Work Procedure

UNIT CHARACTERISTICS WRITING
With CONSULT
1. Confirm the unit characteristics (A and B) of electric controlled coupling (left and right).
  NOTE:
  - This illustration is sample.
  - For the illustration, the unit characteristics are following.

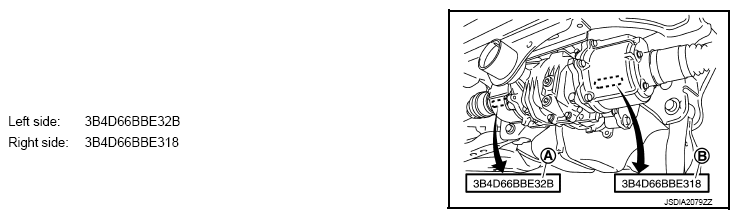

    Fig 1: Identifying Unit Characteristics Of Electric Controlled Coupling (Left And Right)
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Turn the ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "WORK SUPPORT" for "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.
  WORK END
