Exploded View: Disassembly

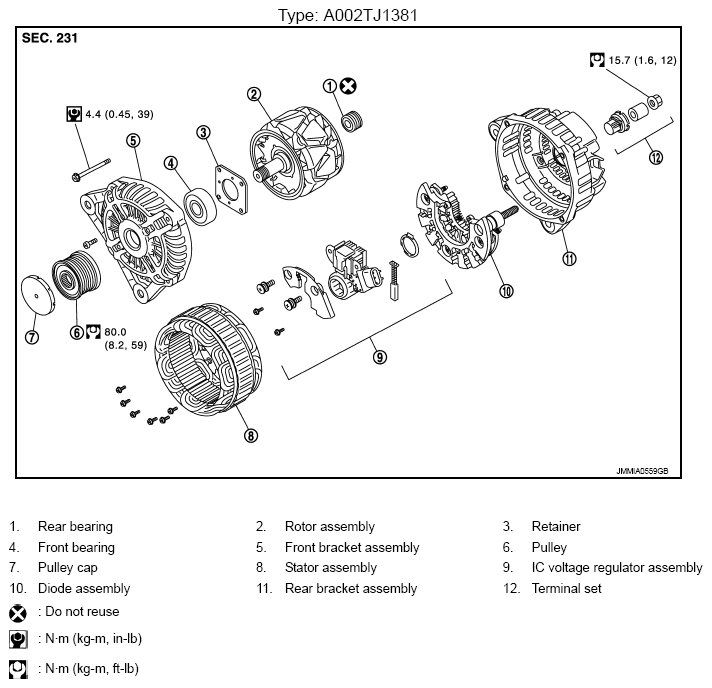

Fig 1: Disassembled View Of Alternator With Torque Specification

G08099537

Courtesy of NISSAN NORTH AMERICA, INC.
