Nissan-Datsun
>>
2012
>>
Frontier SL, RWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Wiring Diagram
>>
A/T Control System
>>
Connector Terminal Identification
Connector Terminal Identification

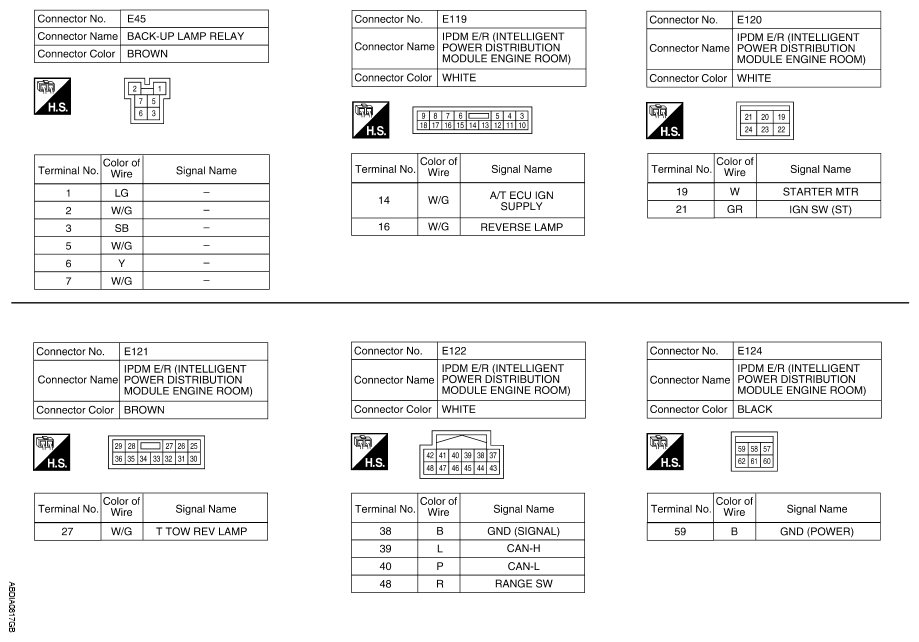

Fig 1: A/T Control System Connector Terminal Identification (1 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

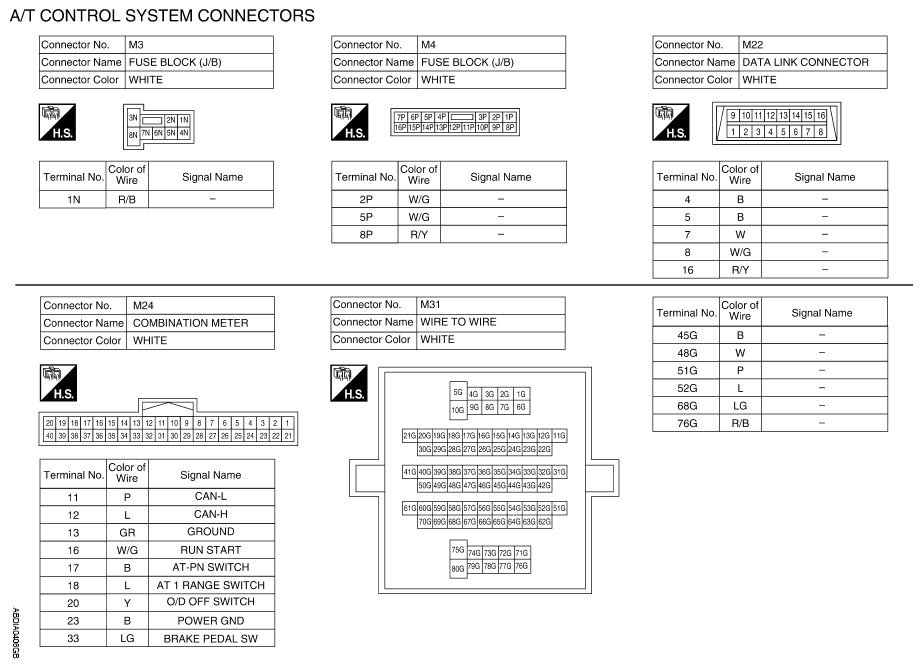

Fig 2: A/T Control System Connector Terminal Identification (2 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

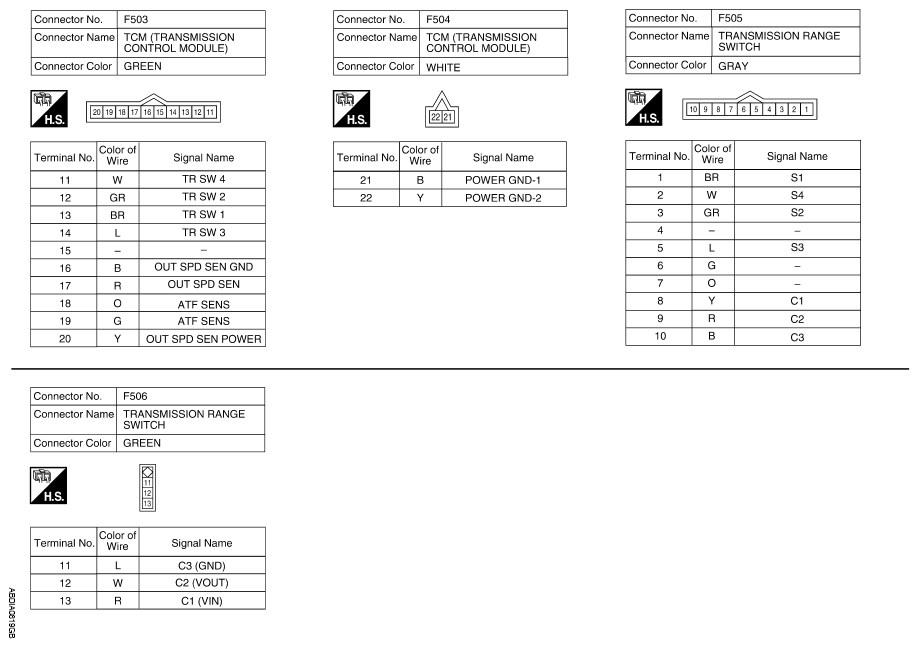

Fig 3: A/T Control System Connector Terminal Identification (3 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

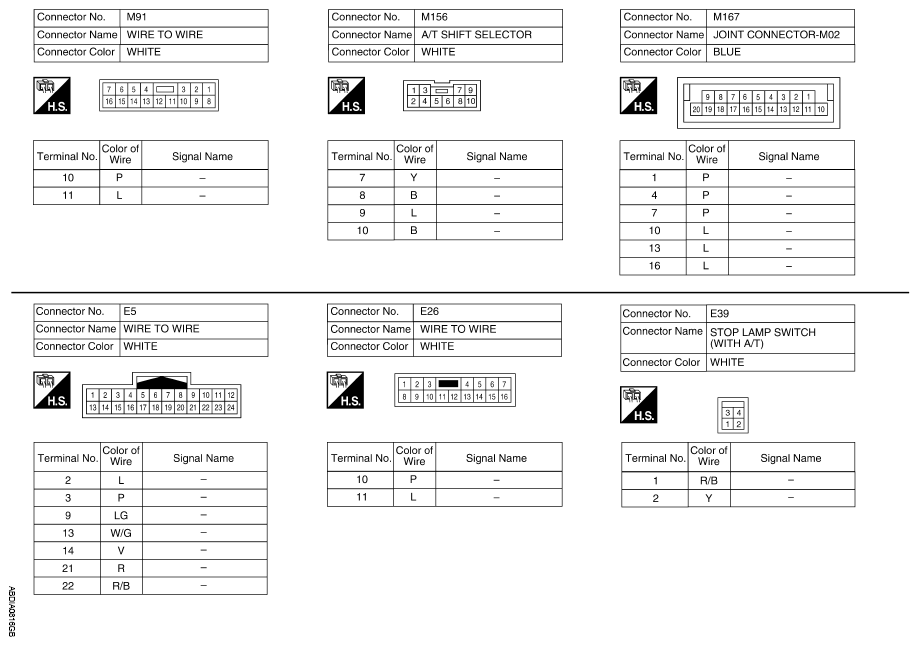

Fig 4: A/T Control System Connector Terminal Identification (4 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.

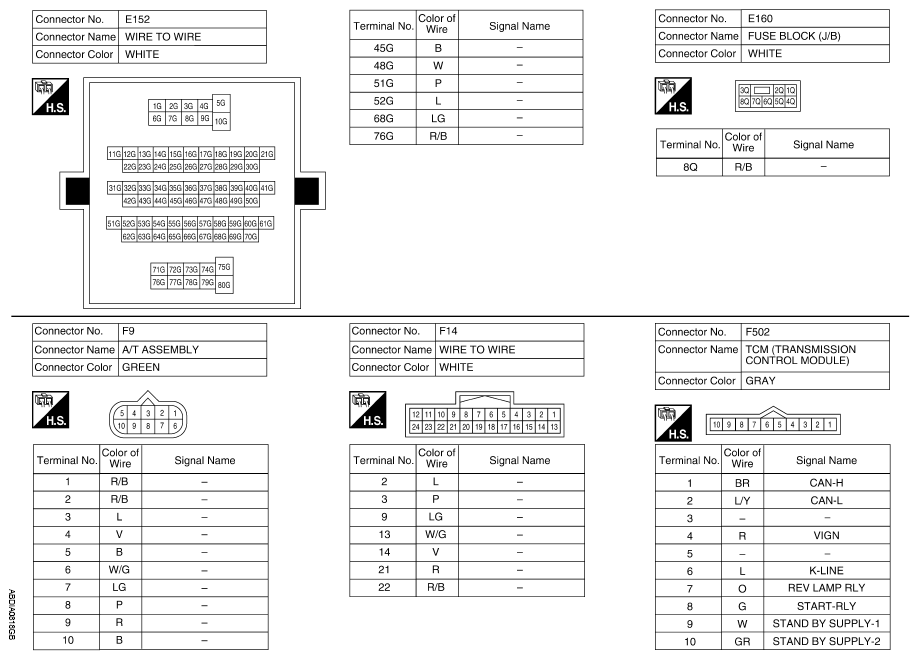

Fig 5: A/T Control System Connector Terminal Identification (5 Of 5)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
