Transmission Assembly: Component

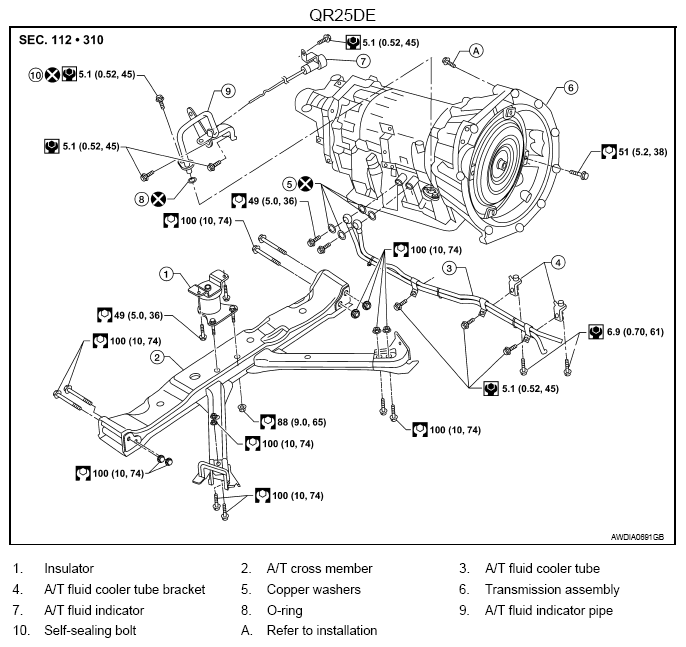

Fig 1: Transmission Assembly Replacement Components With Torque Specifications (QR25DE)
Courtesy of NISSAN NORTH AMERICA, INC.

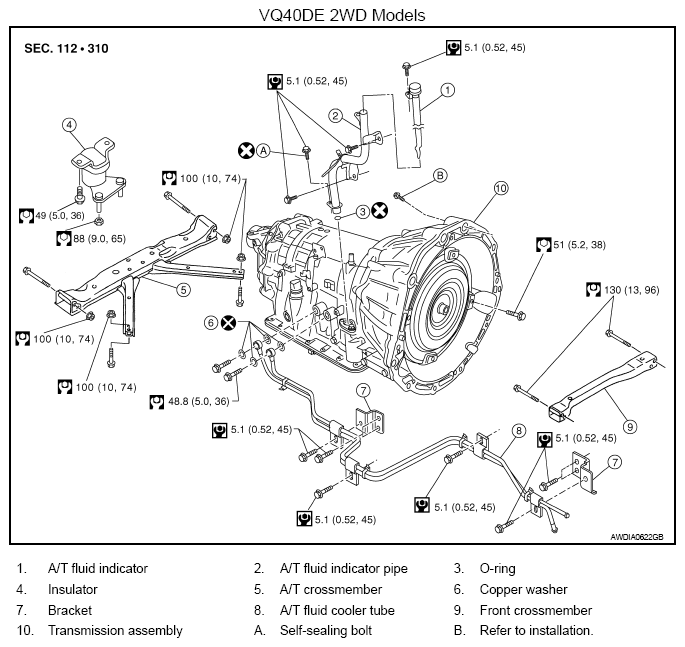

Fig 2: Transmission Assembly Replacement Components With Torque Specifications (VQ40DE 2WD)
Courtesy of NISSAN NORTH AMERICA, INC.

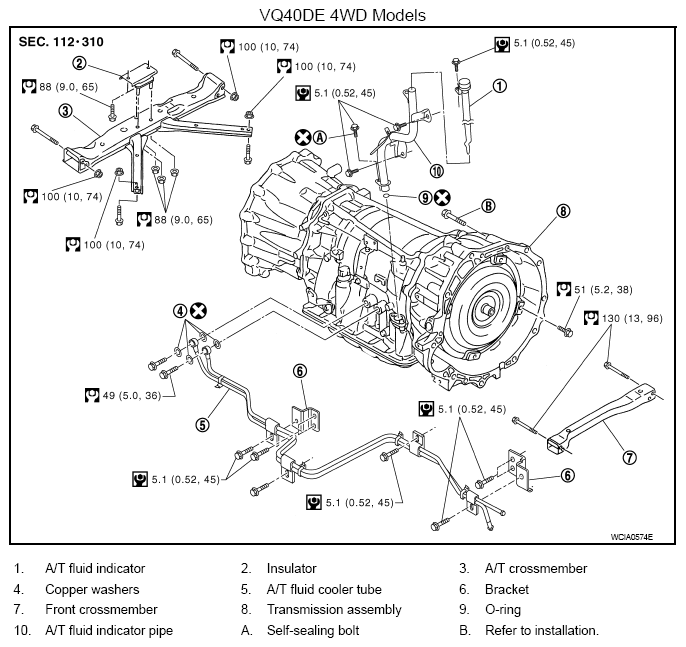

Fig 3: Transmission Assembly Replacement Components With Torque Specifications (VQ40DE 4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
