Connector Terminal Identification

WARNING: This page is about a different variant/trim than selected.

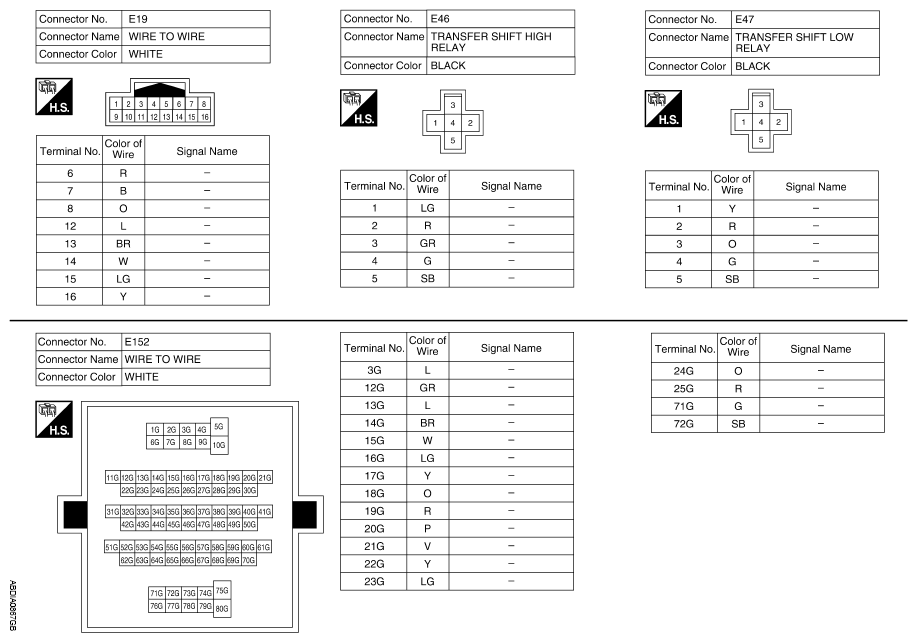

Fig 1: Part Time 4WD System Connector Terminal Identification (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

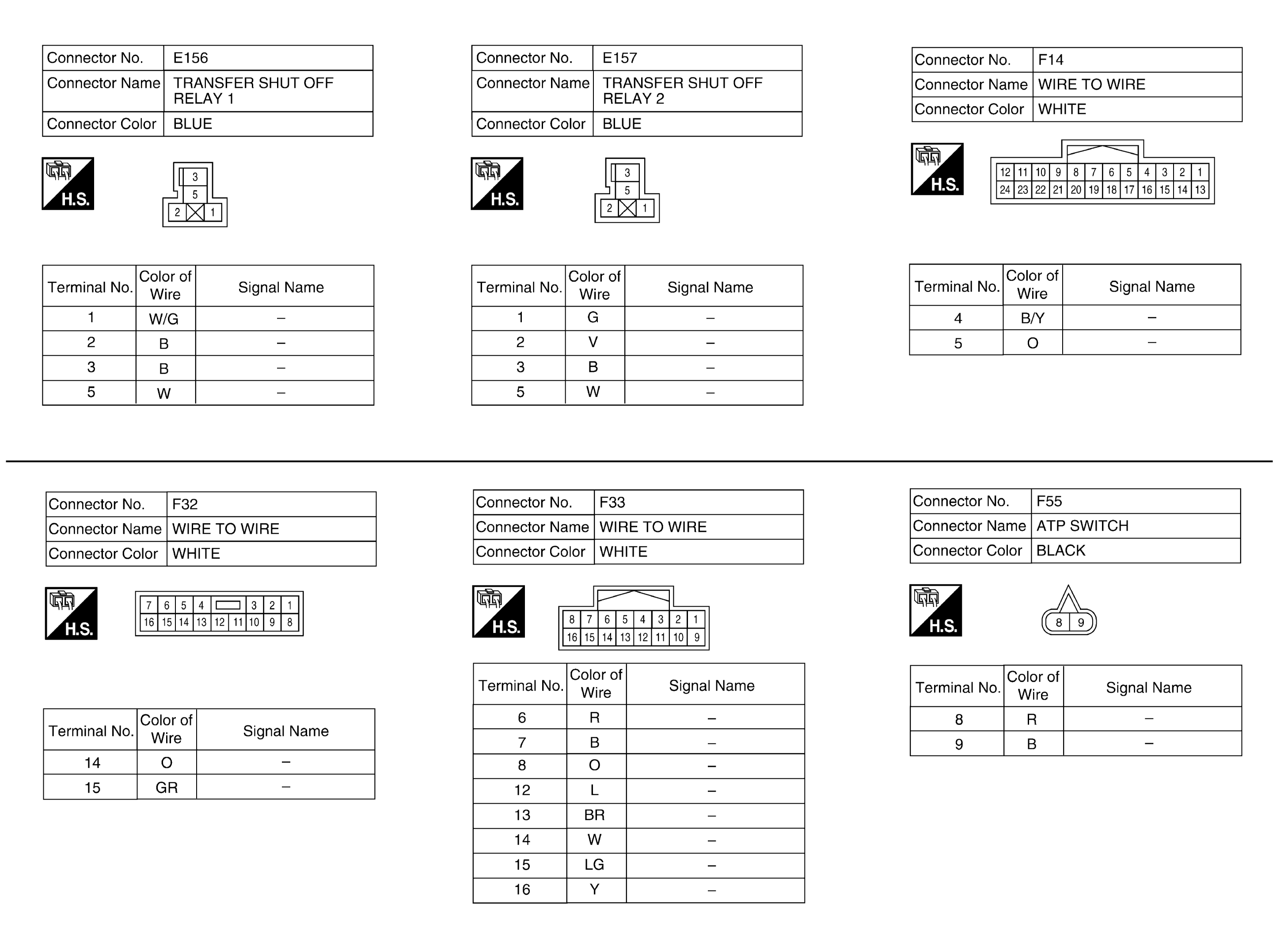

Fig 2: Part Time 4WD System Connector Terminal Identification (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

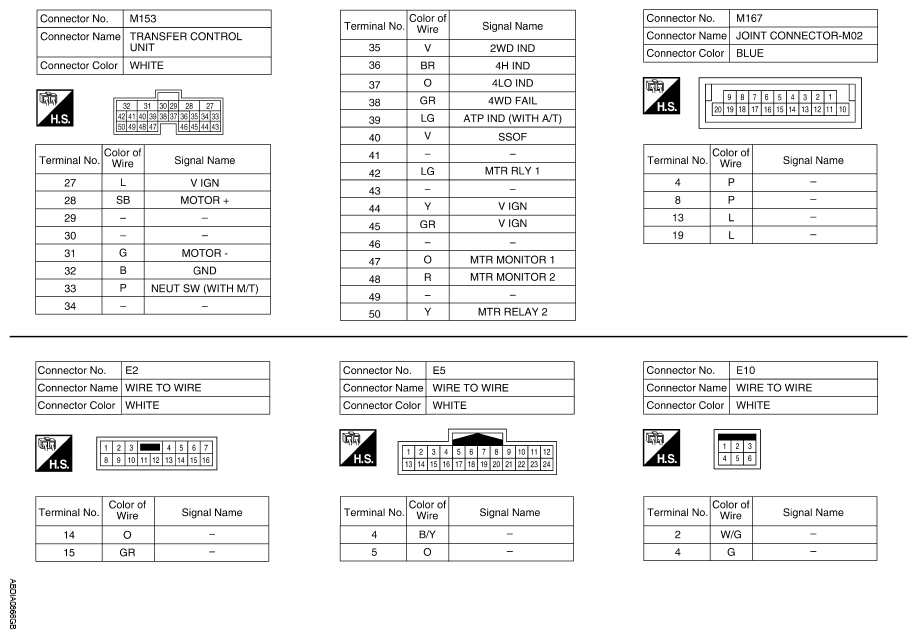

Fig 3: Part Time 4WD System Connector Terminal Identification (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

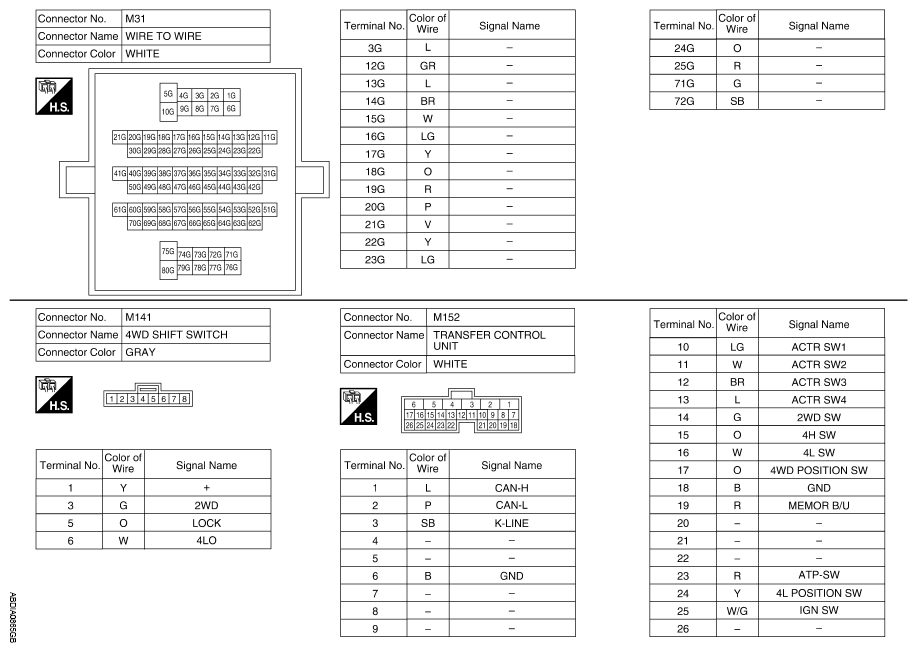

Fig 4: Part Time 4WD System Connector Terminal Identification (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

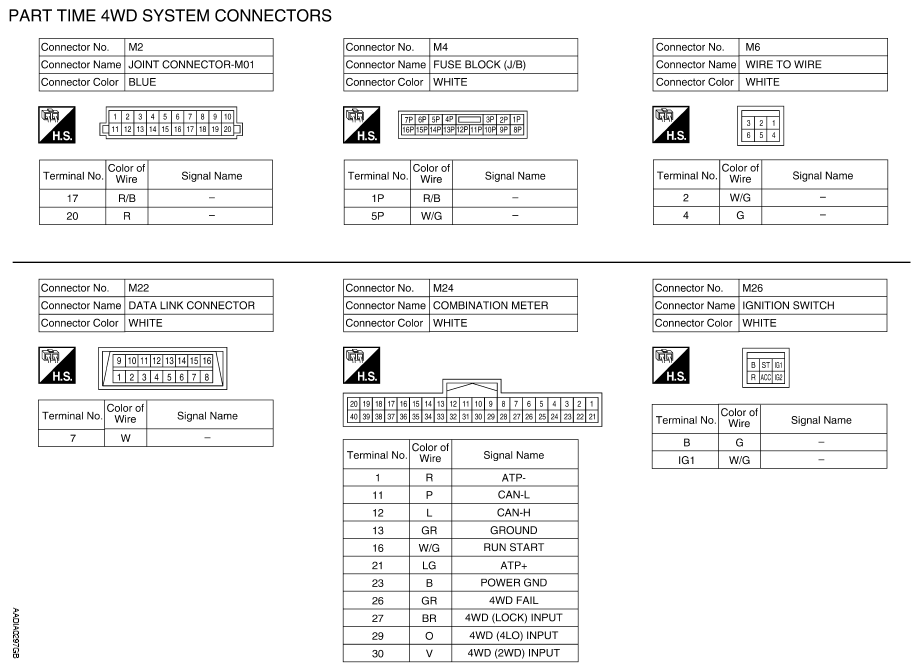

Fig 5: Part Time 4WD System Connector Terminal Identification (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

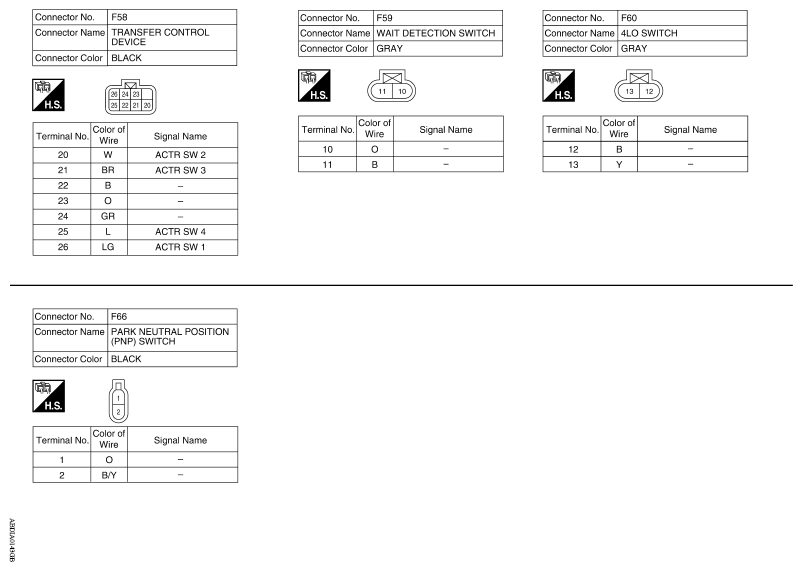

Fig 6: Part Time 4WD System Connector Terminal Identification (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
