Removal and Installation: Notes

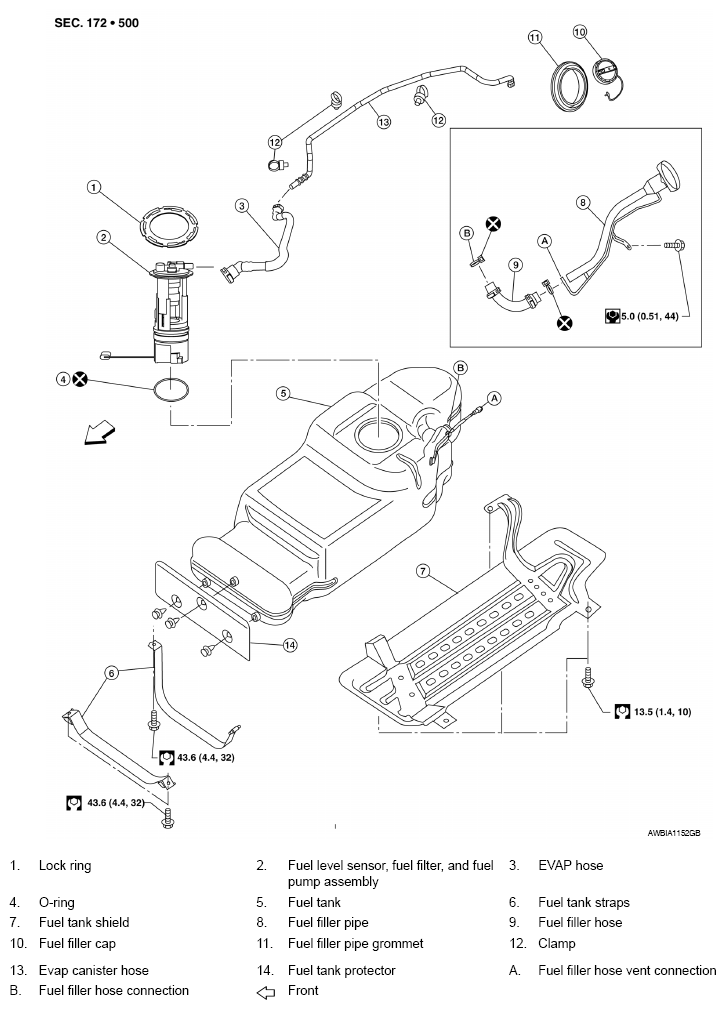

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Follow the "General Precautions" before working on the fuel system. Refer to "GENERAL PRECAUTION ".

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
