Connector Terminal Identification

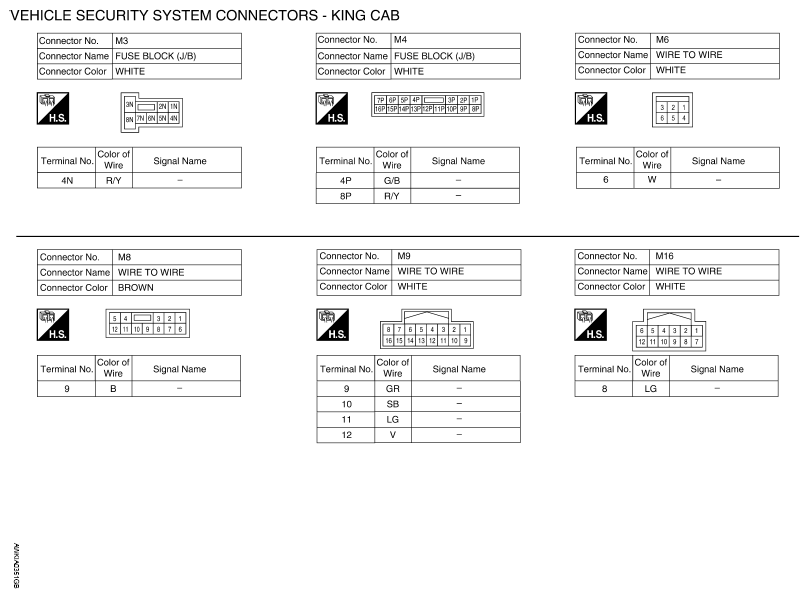

Fig 1: Vehicle Security System Connector Terminal Identification (King Cab) (1 Of 9)
G05703143Courtesy of NISSAN NORTH AMERICA, INC.

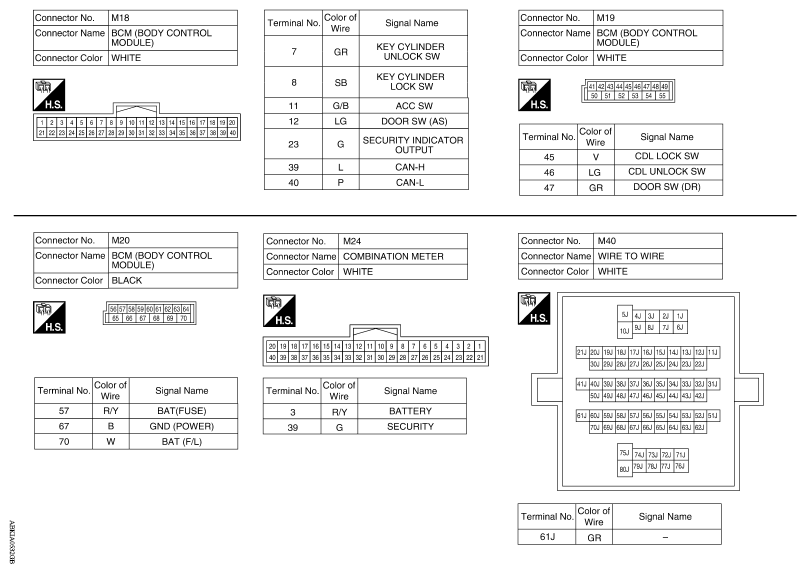

Fig 2: Vehicle Security System Connector Terminal Identification (King Cab) (2 Of 9)
G05884880Courtesy of NISSAN NORTH AMERICA, INC.

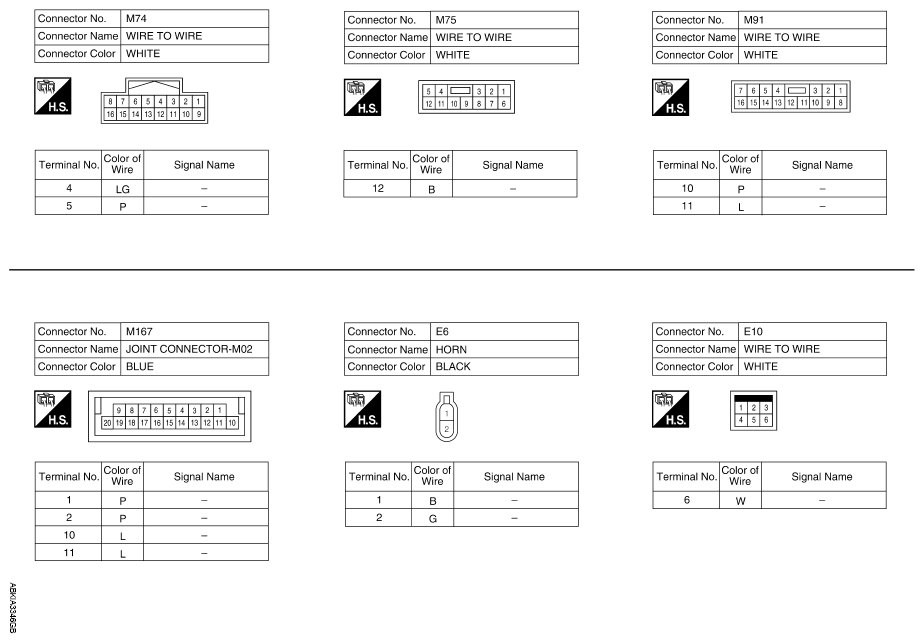

Fig 3: Vehicle Security System Connector Terminal Identification (King Cab) (3 Of 9)
G08138021Courtesy of NISSAN NORTH AMERICA, INC.

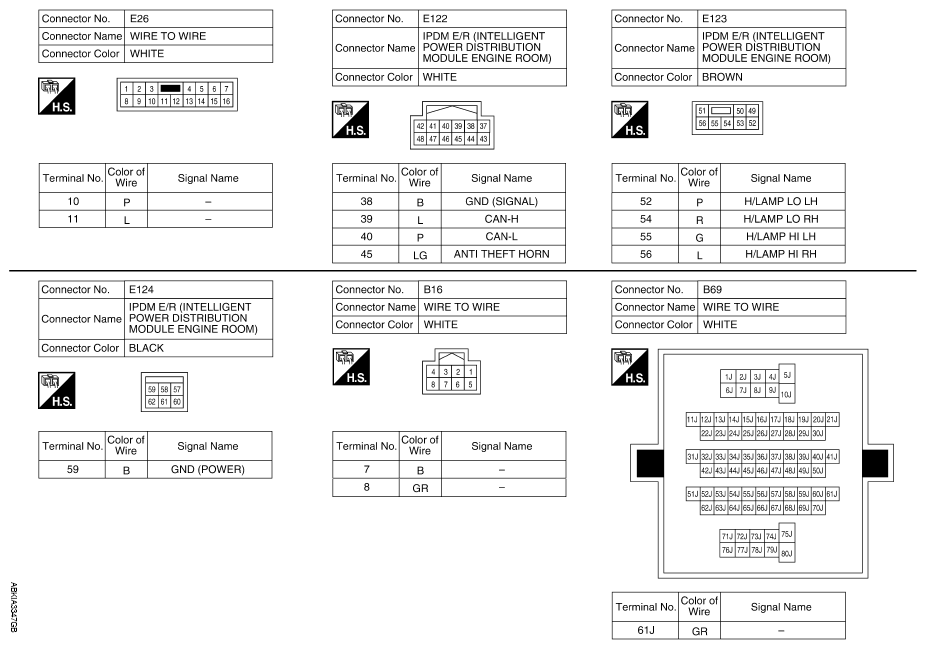

Fig 4: Vehicle Security System Connector Terminal Identification (King Cab) (4 Of 9)
G08138022Courtesy of NISSAN NORTH AMERICA, INC.

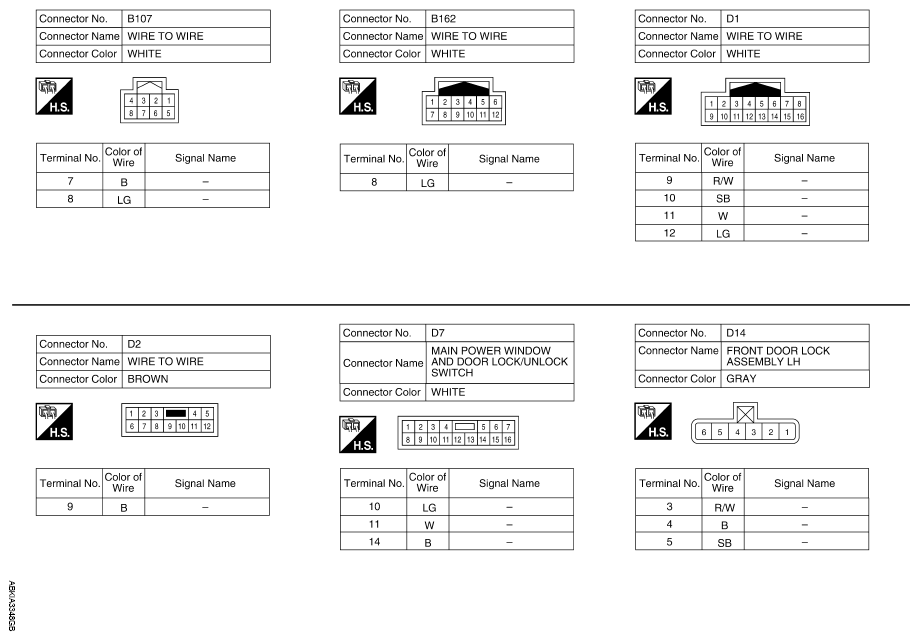

Fig 5: Vehicle Security System Connector Terminal Identification (King Cab) (5 Of 9)
G08138023Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Vehicle Security System Connector Terminal Identification (King Cab) (6 Of 9)
G00527332Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Vehicle Security System Connector Terminal Identification (King Cab) (7 Of 9)
G00527333Courtesy of NISSAN NORTH AMERICA, INC.
Fig 8: Vehicle Security System Connector Terminal Identification (King Cab) (8 Of 9)
G00527334Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Vehicle Security System Connector Terminal Identification (King Cab) (9 Of 9)
G00527335Courtesy of NISSAN NORTH AMERICA, INC.
