Exploded View: Components

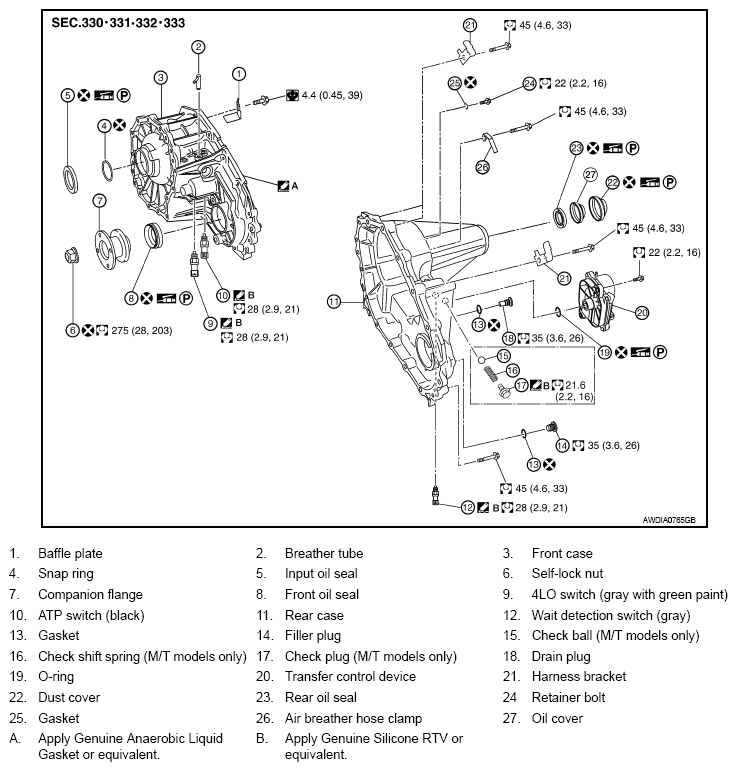

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
G08135334Courtesy of NISSAN NORTH AMERICA, INC.

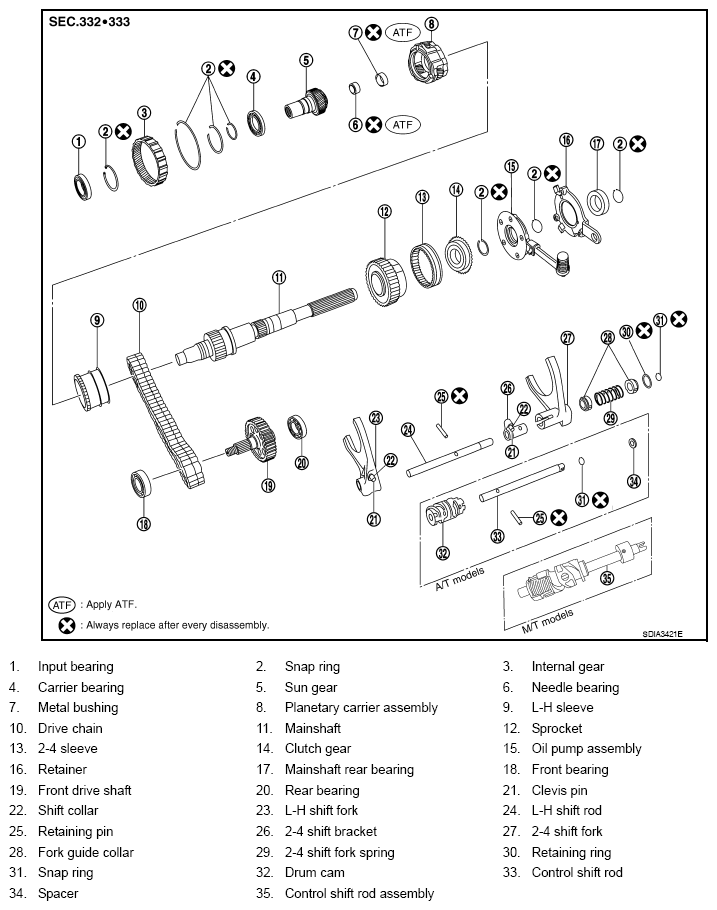

Fig 2: Disassembled View Of Transfer Assembly
G08135335Courtesy of NISSAN NORTH AMERICA, INC.
