Nissan-Datsun
>>
2012
>>
Frontier SL, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
System Description
>>
4WD System
>>
Cross-Sectional View
Cross-Sectional View

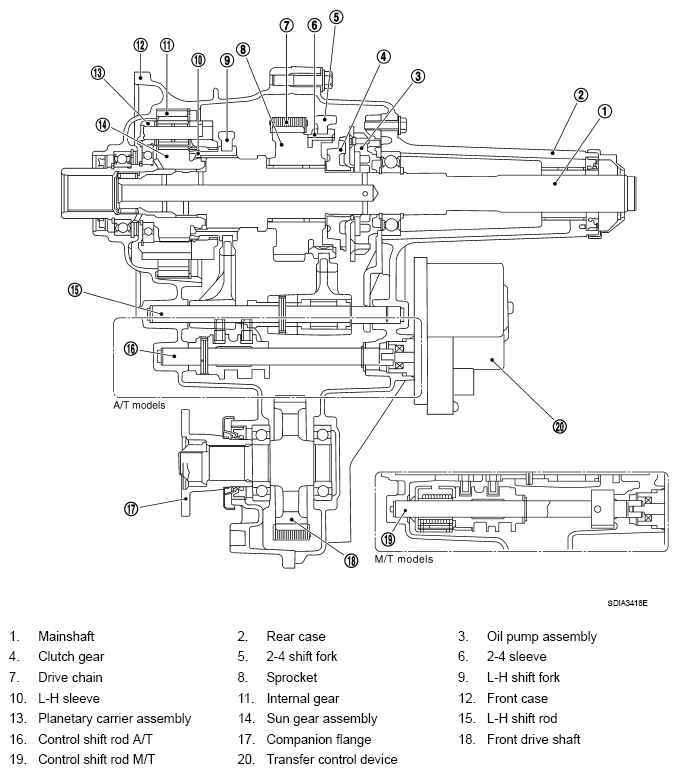

Fig 1: Cross-Sectional View Of Transfer System (4WD)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
