Exploded View

Fig 1: Exploded View Of Transmission Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols not described on the above.

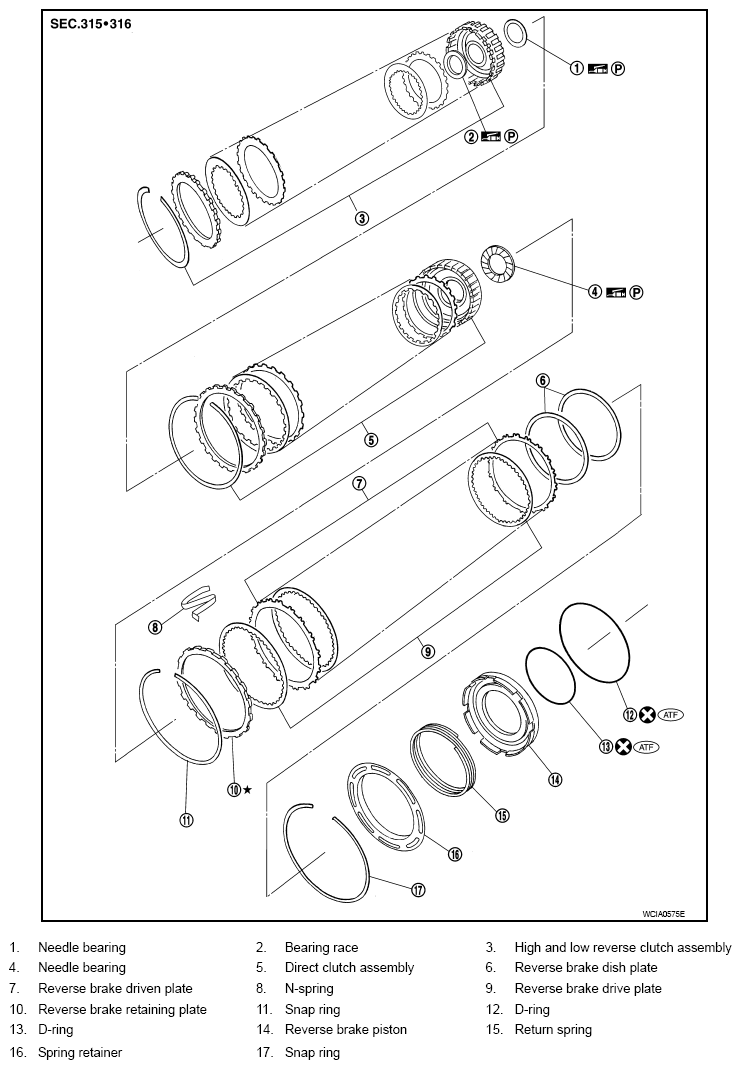

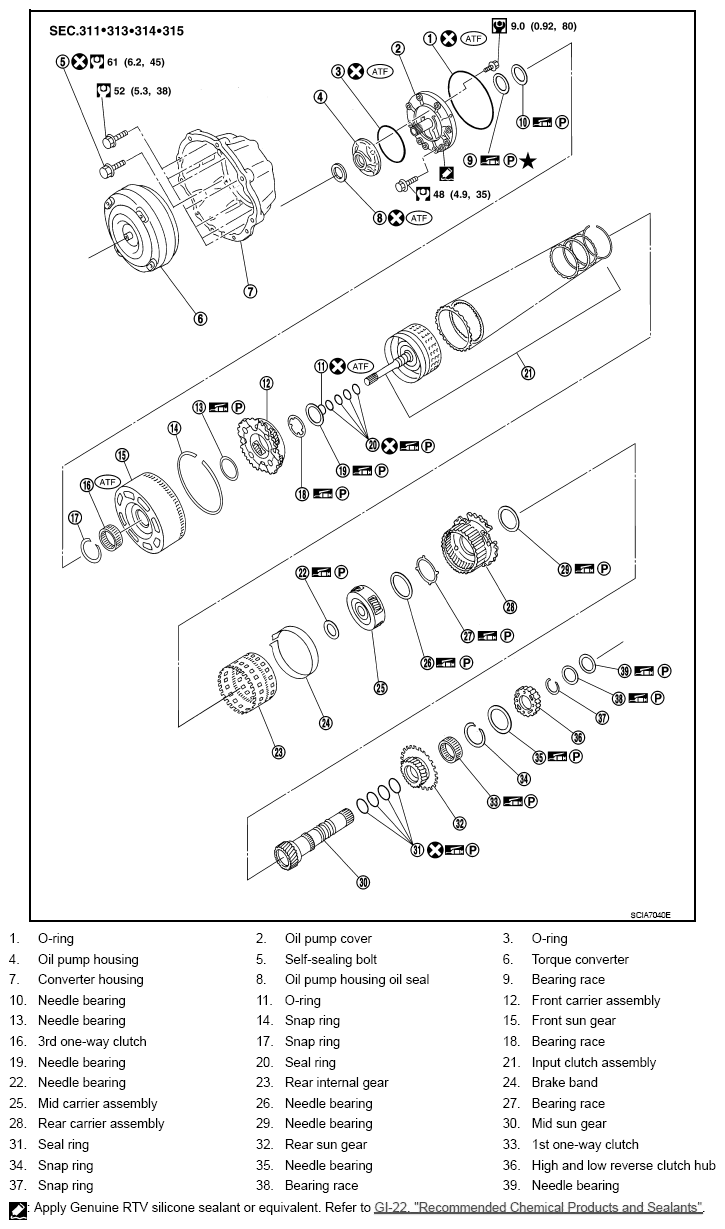

Fig 2: Exploded View Of Transmission Bearings & Plates

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.

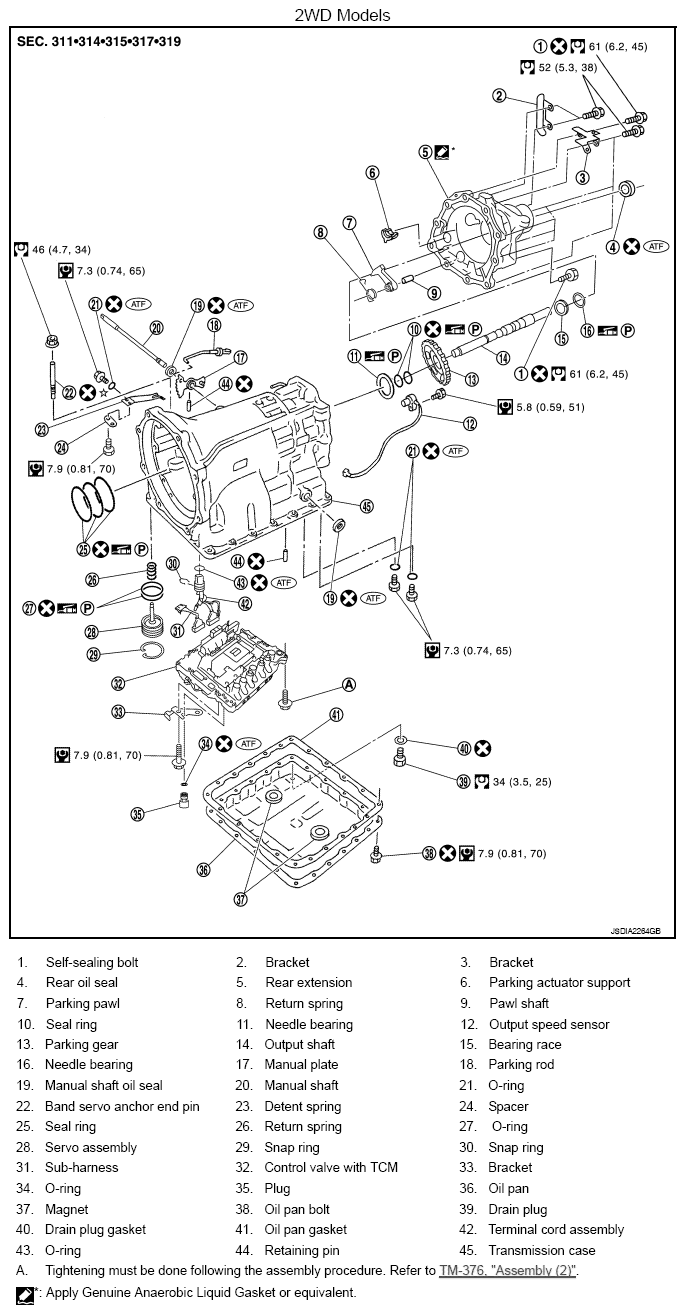

Fig 3: Exploded View Of Transmission Assembly With Torque Specifications (2WD)

Courtesy of NISSAN NORTH AMERICA, INC.

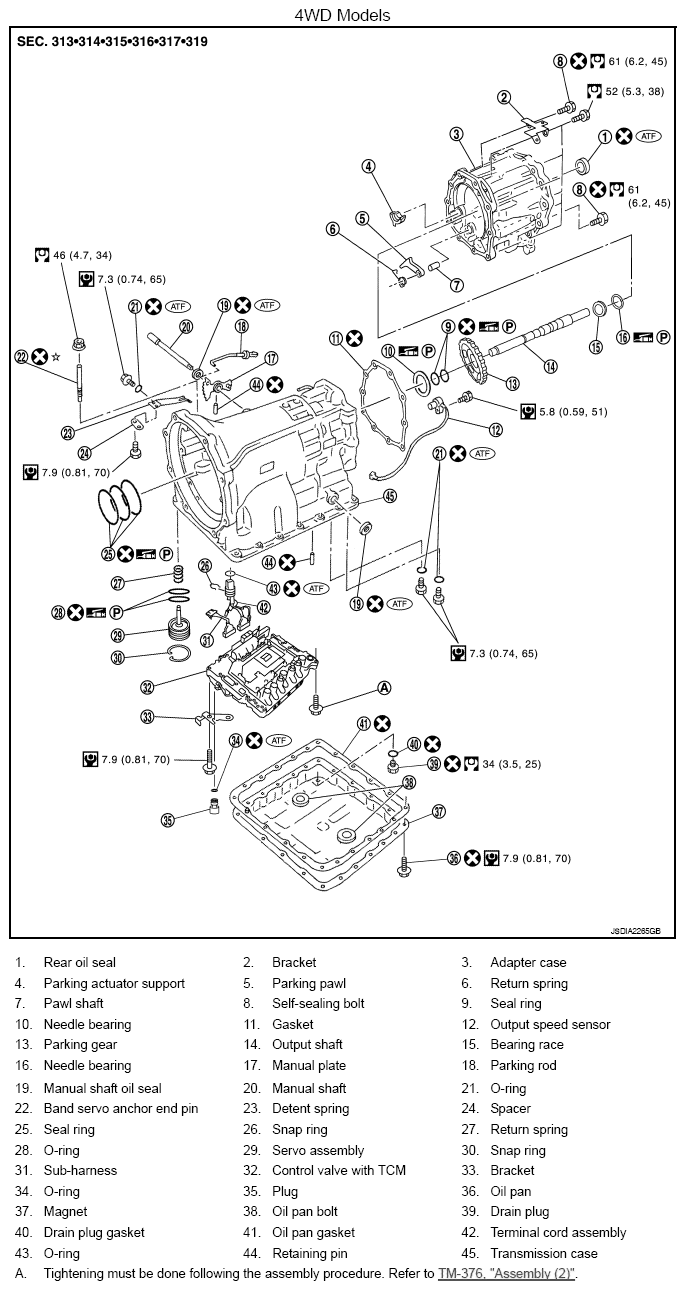

Fig 4: Exploded View Of Transmission Assembly With Torque Specifications (4WD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENT " for symbols in the figure.
