Shift Change

The clutch is controlled with the optimum timing and oil pressure by the engine speed, engine torque information, etc.

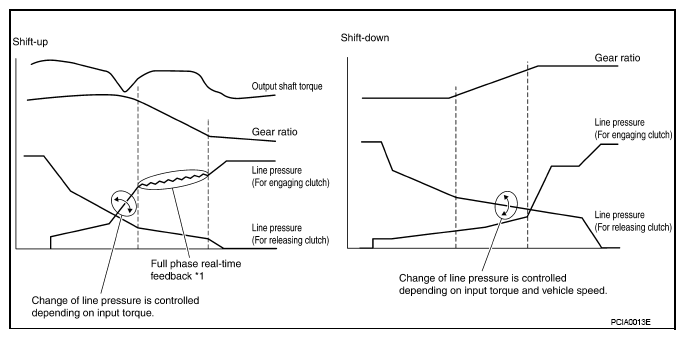

Shift Change System Diagram

Fig 1: Shift Change System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

*1: Full phase real-time feedback control monitors movement of gear ratio at gear change, and controls oil pressure at real-time to achieve the best gear ratio.
