Frontier SL, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission
>>
Removal And Installation
>>
Shift Control System
>>
Exploded view
Exploded view

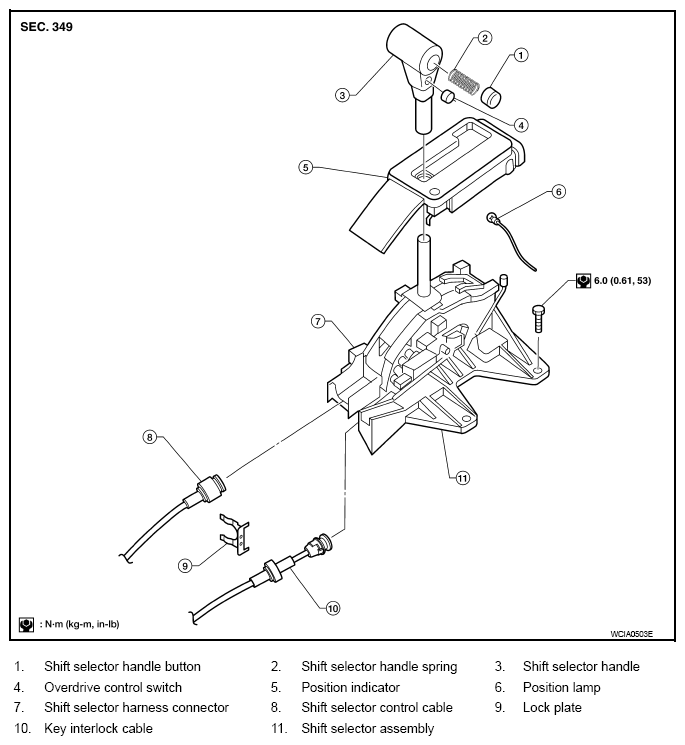

Fig 1: Exploded View Of Shift Control System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
