Key Interlock Cable: Component

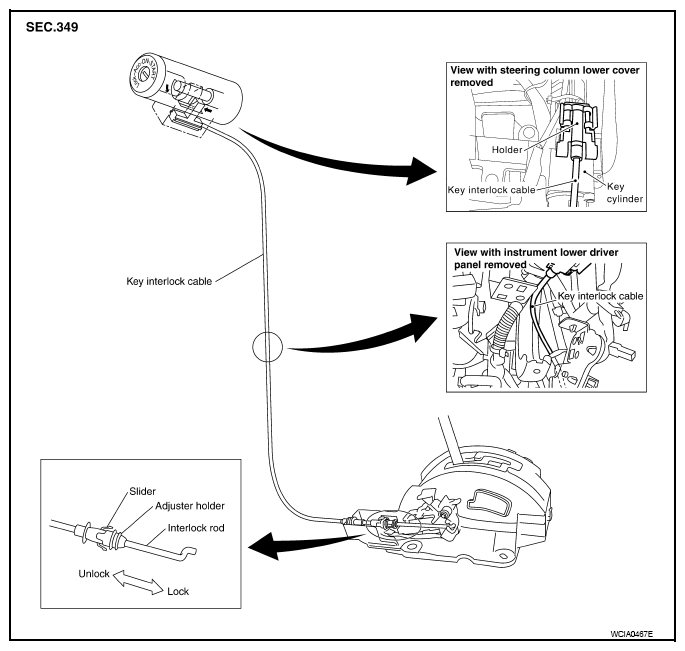

Fig 1: Identifying Key Interlock Cable Replacement Components

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:

Install key interlock cable in such a way that it will not be damaged by sharp bends, twists or interference with adjacent parts.
After installing key interlock cable to shift selector, make sure that casing cap and bracket are firmly secured in their positions. If casing cap can be removed with an external load of less than 39 N (4.0 kg, 8.8 lb), replace key interlock cable with new one.
