Primary Speed Sensor Connector End View (F55)

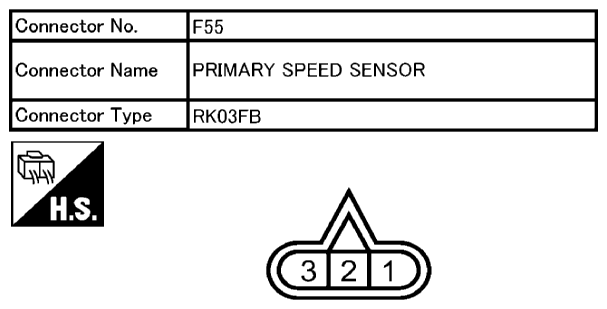

Fig 1: Primary Speed Sensor Connector End View (F55)
G10657730Courtesy of NISSAN NORTH AMERICA, INC.
