Front Seat
>>
Exploded View
>>
Driver's Seat
Driver's Seat

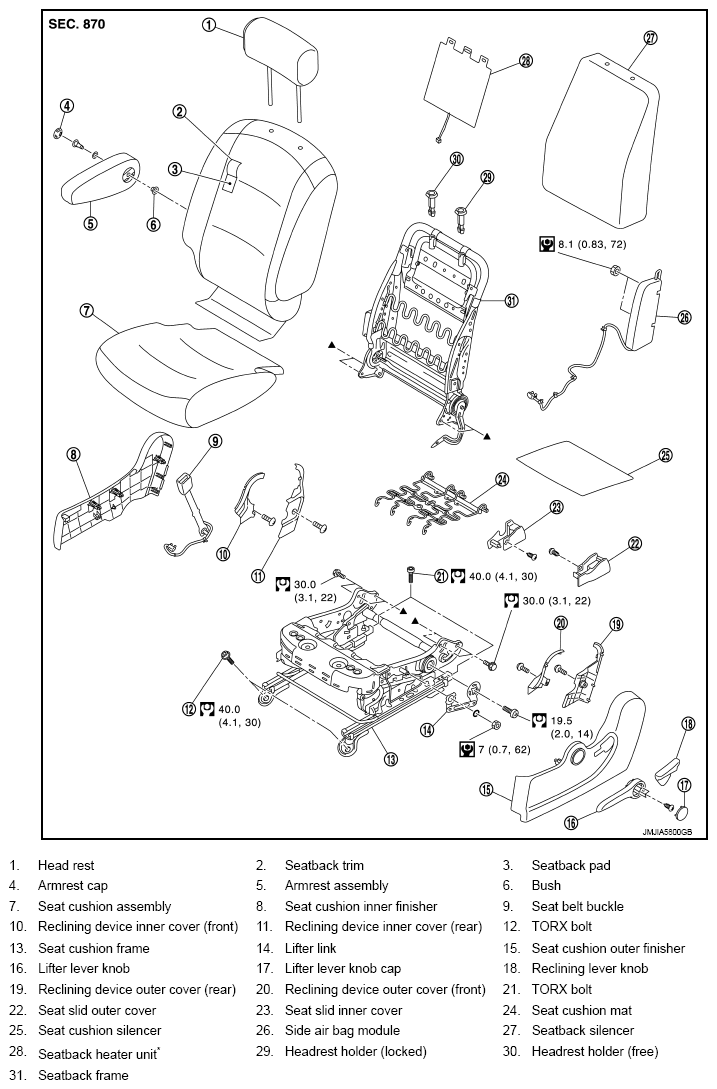

Fig 1: Exploded View Of Front Seat (Driver's Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
