Case And Housing

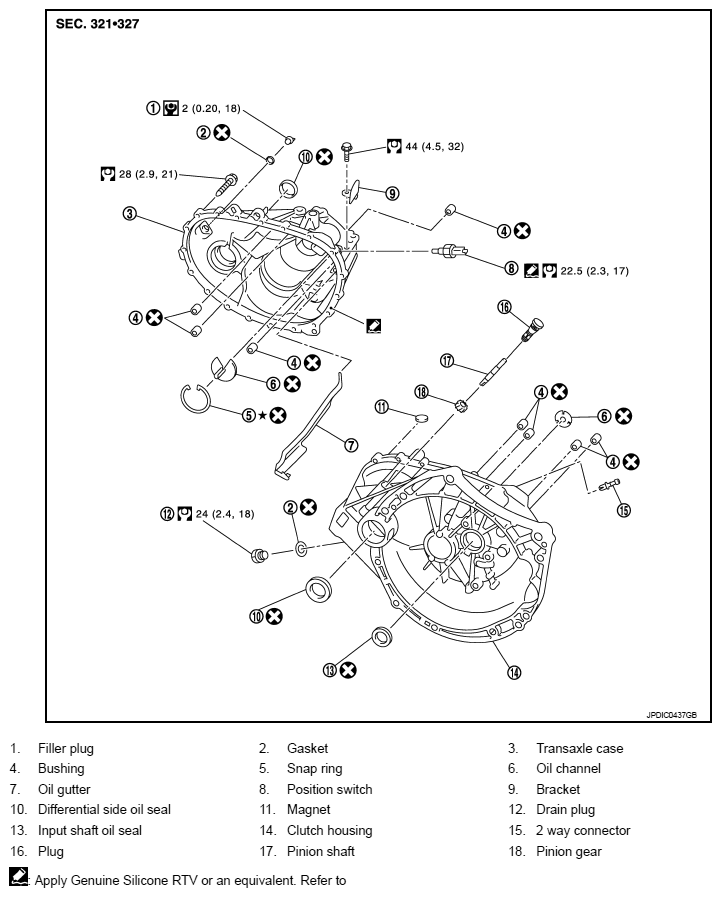

Fig 1: Exploded View Of Case And Housing
G08136170Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
