Exploded View

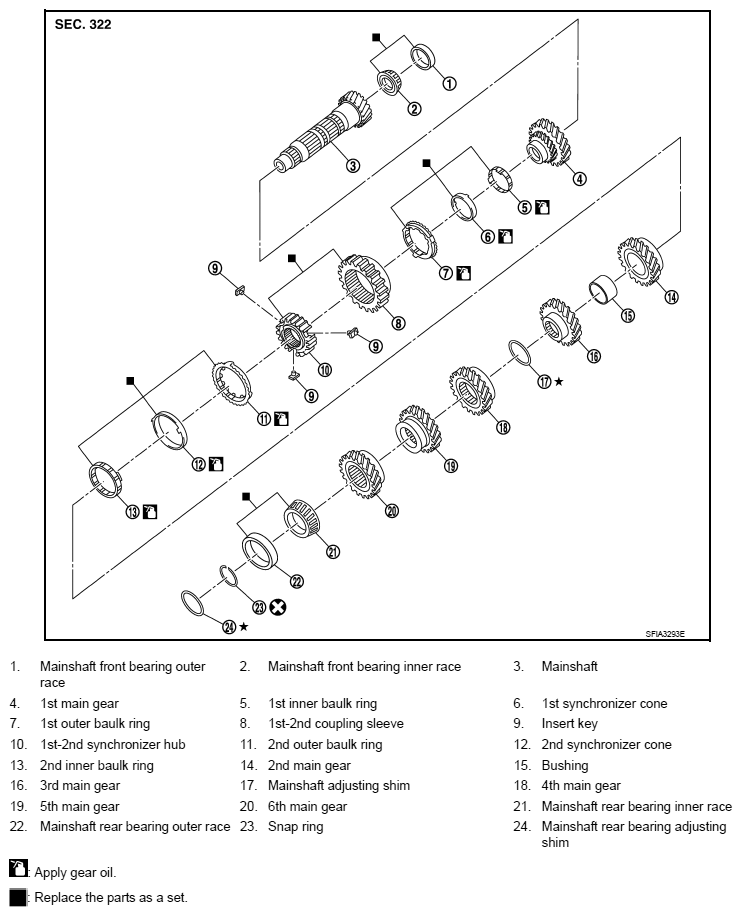

Fig 1: Exploded View Of Mainshaft And Gears

G08136241

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
