Input Shaft And Gear
>>
Exploded View
Exploded View

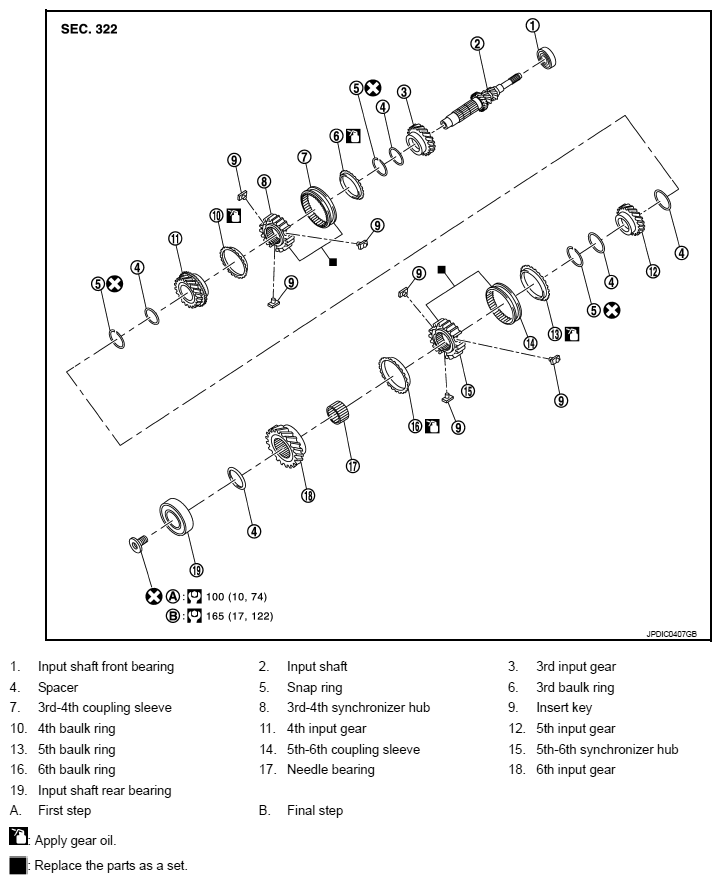

Fig 1: Exploded View Of Input Shaft And Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols not described on the above.
