Exploded View

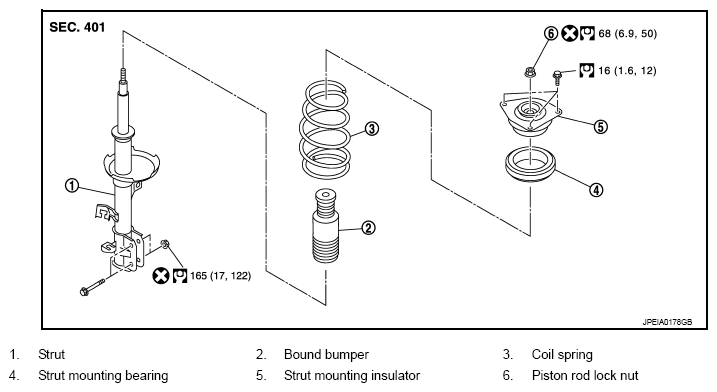

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications

G08127014

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
