Exploded View: Disassembly

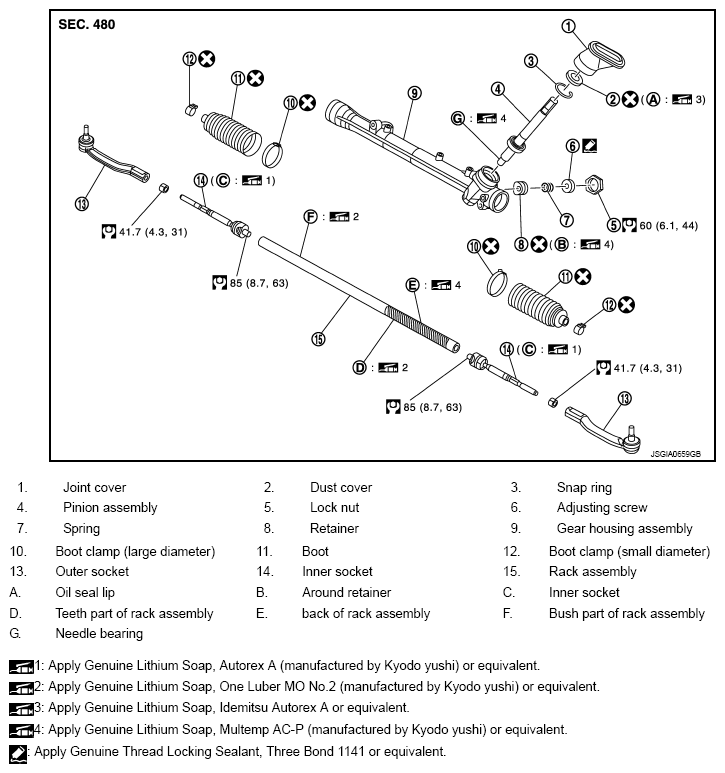

Fig 1: Exploded View Of Steering Gear And Linkage Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
