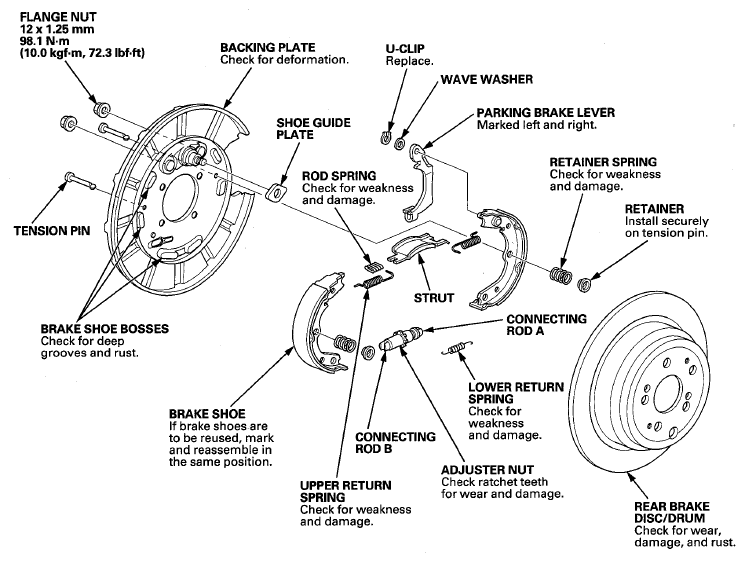

Exploded View
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Frequent inhalation of brake shoe dust, regardless of material composition, could be hazardous to your health.
- Avoid breathing dust particles.
- Never use an air hose or brush to clean brake assemblies. Use an OSHA-approved vacuum cleaner.
NOTE:
Refer to the
Exploded View as needed during this procedure.
- Raise and support the vehicle (see LIFT AND SUPPORT POINTS ).
- Remove the rear wheels.
- Release the parking brake, and remove the rear brake disc/drum (see REAR BRAKE DISC REPLACEMENT ).
- Check the parking brake linings (A) for cracking, glazing, wear/and contamination.
- Measure the parking brake lining thickness (B). Measurement does not include brake shoe thickness.
Parking brake lining thickness:
Standard: 3.9 mm (0.154 in)
Service limit: 1.0 mm (0.039 in)
- If any part of the parking brake lining thickness is less than the service limit, replace all of the parking brake shoes as a set (see PARKING BRAKE SHOE REPLACEMENT ).
- Check the hub (C) for smooth operation. If it requires servicing, replace the hub bearing unit (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
- Measure the inside diameter of the parking brake drum with inside vernier caliper.
Parking brake drum inside diameter:
Standard: 210.0-210.1 mm (8.268-8.272 in)
Service limit: 211.0 mm (8.307 in)
- If the inside diameter of the parking brake drum is more than the service limit, replace the brake disc/drum.
- Check the parking brake disc/drum for scoring, grooves, and cracks.
- Install the brake disc/drum and the rear brake caliper (see REAR BRAKE DISC REPLACEMENT ).
- Do the major parking brake adjustment (see MAJOR ADJUSTMENT (TO BE DONE WHEN REPLACING PARKING BRAKE SHOES AND AFTER LINING SURFACE BREAK-IN) ).
- Clean the mating surfaces between the brake disc/drum and the inside of the wheel, then install the rear wheels.
