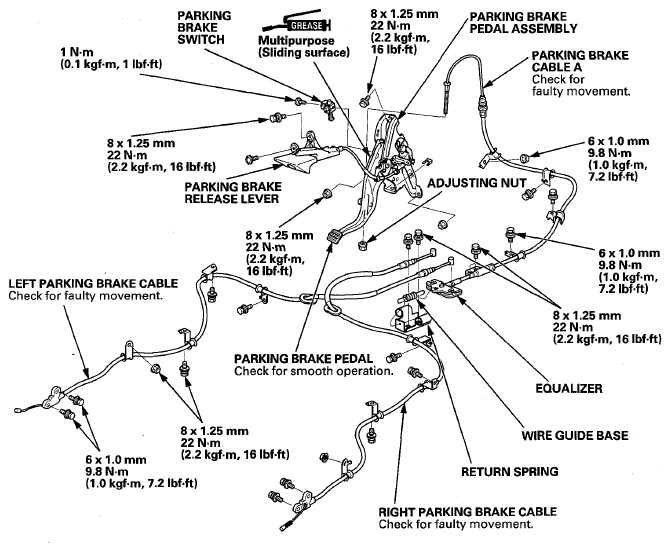

Exploded View
WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
- The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable failure.
- Refer to the
Exploded View as needed during these procedure.
