Subwoofer/amplifier unit (with navigation)

WARNING: This page is about a different car, the 2013 Acura MDX, 2012 Acura MDX, 2011 Acura MDX, and 2010 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect the 8P connector (A), then remove the bolts (B), nuts (C) and pull out the subwoofer (D).

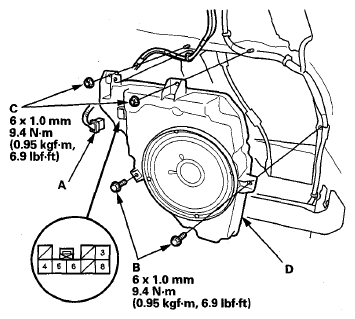

    Fig 1: Subwoofer/Amplifier Unit With Torque Specifications (With Navigation)
    G08054266Courtesy of AMERICAN HONDA MOTOR CO., INC.
