Exploded View

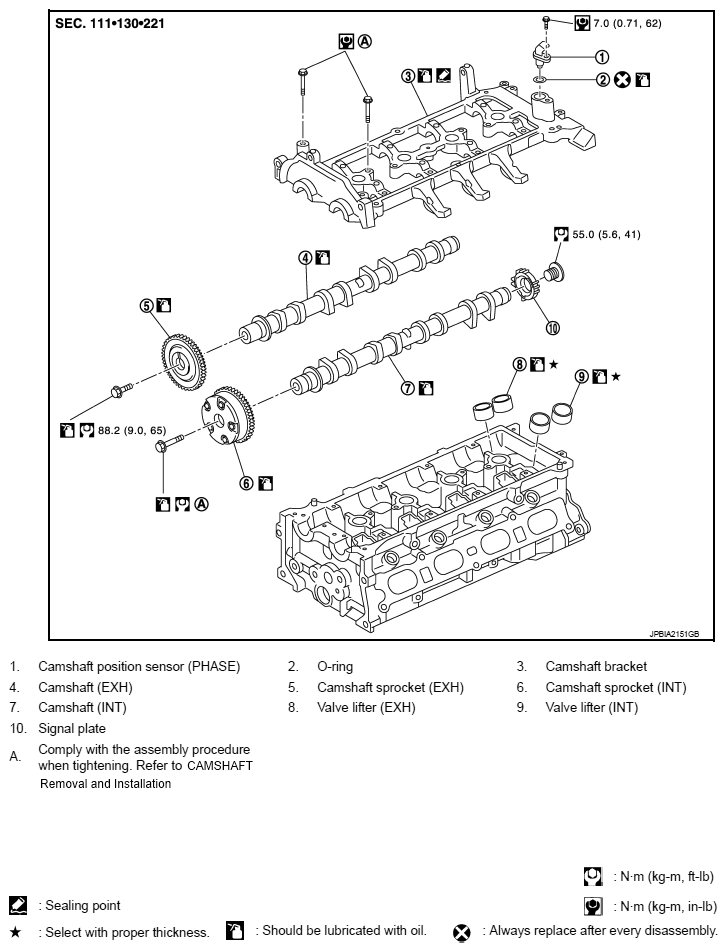

Fig 1: Exploded View Of Camshaft With Torque Specifications

G08128107

Courtesy of NISSAN NORTH AMERICA, INC.
