Engine Cooling System Schematic

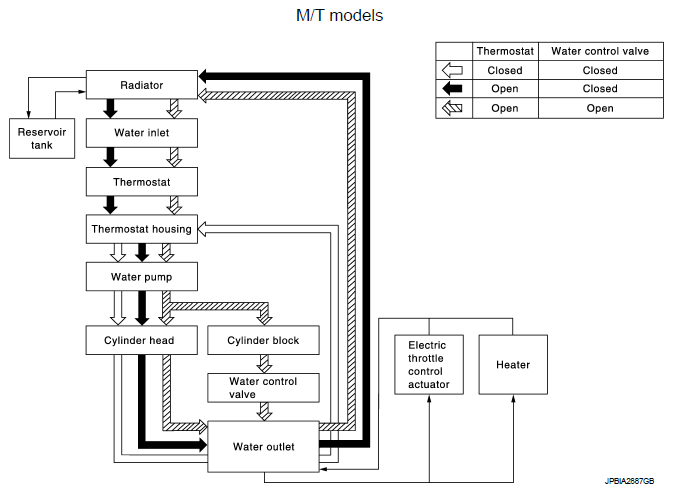

Fig 1: Engine Cooling System Schematic (M/T Models)
G05914360Courtesy of NISSAN NORTH AMERICA, INC.

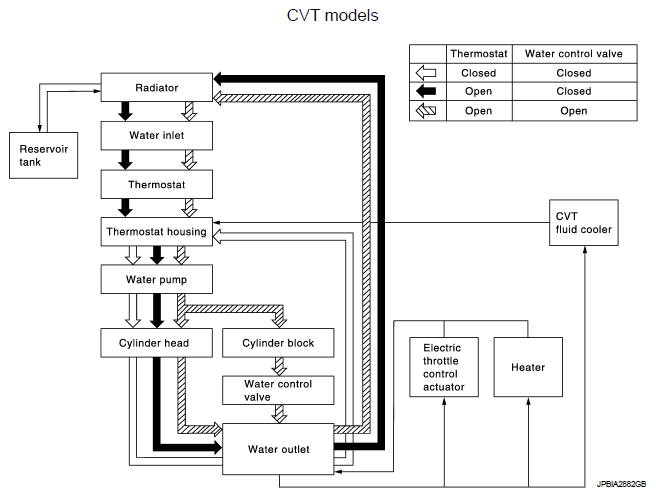

Fig 2: Engine Cooling System Schematic (CVT Models)
G05914361Courtesy of NISSAN NORTH AMERICA, INC.
