Exploded View: Removal

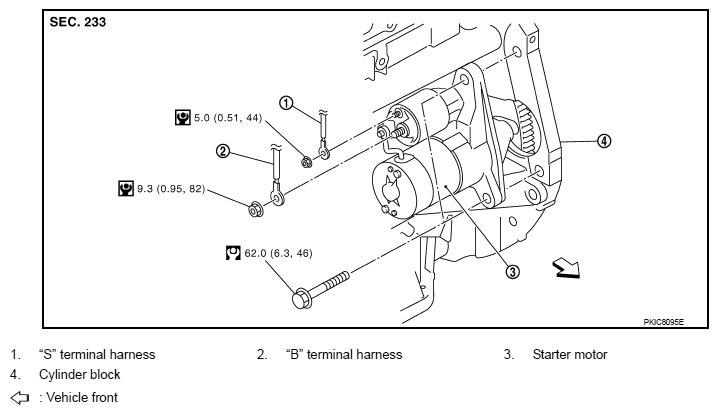

Fig 1: Exploded View Of Starter Motor With Torque Specifications

G08136084

Courtesy of NISSAN NORTH AMERICA, INC.
