Disassembly and Assembly: Disassembly: Notes

  1. Remove the armrest assembly.
    • Remove the armrest cap.
    • Remove the mounting bolt, and then remove armrest assembly.
  2. Remove the seatback trim and seatback pad.
    • Remove seatback retainer installed in the lower portion of seat cushion.
    • Remove harness installed in the lower portion of seat cushion
    • Remove the seatback retainer (1), and then open the fastener (2).
      Fig 1: Identifying Seatback Retainers And Fasteners
      G05916012Courtesy of NISSAN NORTH AMERICA, INC.
    • Disconnect seat heater unit harness connector. (heater seat model only)
    • Remove the seatback retainer from seatback inside.
    • Remove the headrest holder.
      CAUTION: Before installing headrest holder check its orientation. (front/rear and right/left)
      Fig 2: Removing Headrest Holder
      G04928096Courtesy of NISSAN NORTH AMERICA, INC.
    • Remove the side air bag module mounting nuts.
    • Remove the seatback trim and seatback pad from the seatback frame.
    • Remove the hog rings, and separate the seatback trim and seatback pad.
  3. Separate the seatback pad and seatback heater unit.
  4. Remove the seatback silencer.
  5. Remove the seat cushion outer finisher.
    • Remove the pawls, and then lifter lever knob finisher (1). (Driver's seat only)
      Fig 3: Identifying Lifter Lever And Knob Finisher
      G08127722Courtesy of NISSAN NORTH AMERICA, INC.
    • Remove the mounting screws, and remove the lifter lever (2). (Driver's seat only)
    • Pull out the reclining lever while holding and raising the pawl.
      Fig 4: Pulling Reclining Lever
      G08127723Courtesy of NISSAN NORTH AMERICA, INC.
    • Remove the metal clip and pawls, and then pull out seat cushion outer finisher outside.

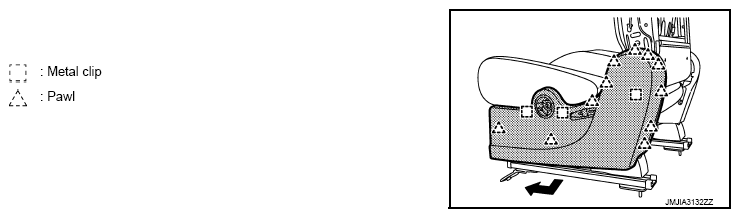

    Fig 5: Pulling Out Seat Cushion Outer Finisher
    G08127724Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the metal clip and pawls, and then pull out seat cushion inner finisher.

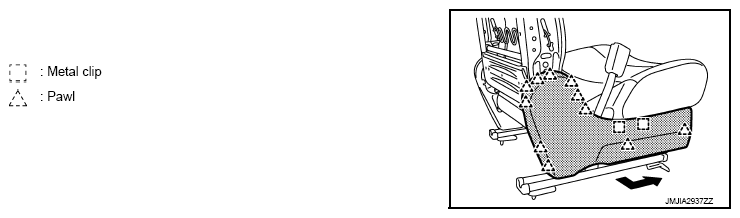

    Fig 6: Pulling Out Seat Cushion Inner Finisher
    G08127725Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the seat belt buckle. Refer to "SEAT BELT BUCKLE: REMOVAL AND INSTALLATION ".
  8. Remove the seat cushion assembly.
    • Remove the seat cushion trim retainer.
    • Remove the seat cushion assembly from the seat cushion frame.
  9. Remove the seat cushion silencer.
  10. Remove the reclining device cover.
    • Remove the screws, and then reclining device outer cover (front, rear).
    • Remove the screws, and then reclining device inner cover (front, rear).
  11. Remove the mounting bolt, and then remove seatback frame.
  12. Remove the following parts after removing seatback frame.
