LEMON Manuals
: Even more car manuals for everyone
Home
>>
Nissan-Datsun
>>
2012
>>
Altima SL
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belts
>>
Removal And Installation
>>
Front Seat Belt
>>
Exploded View
Exploded View

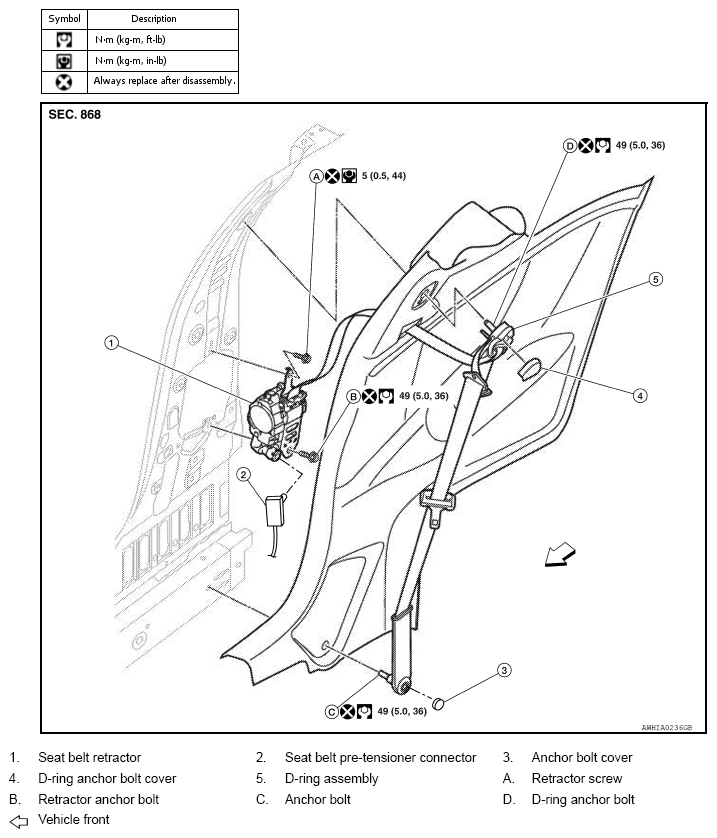

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications (Sedan Models)
Courtesy of NISSAN NORTH AMERICA, INC.

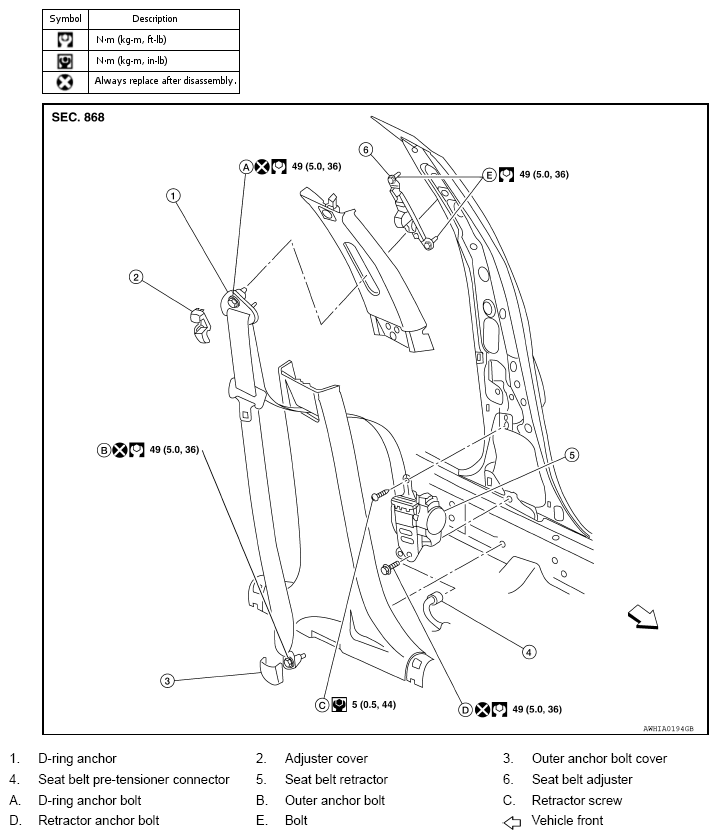

Fig 2: Exploded View Of Front Seat Belt With Torque Specifications (Coupe Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
