Component Inspection (Condenser)
WARNING: This page is about a different variant/trim than selected.
- CHECK CONDENSER
- Turn ignition switch OFF.
- Disconnect condenser harness connector.

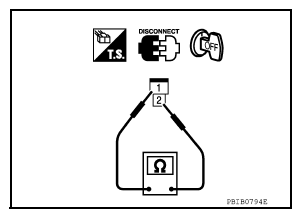

- Check resistance between condenser terminals as per the following.
| Terminals |
Resistance |
| 1 and 2 |
Above 1 MΩ [at 25C° (77C°)] |
Courtesy of NISSAN NORTH AMERICA, INC.
Is the inspection result normal?
YES: INSPECTION END
NO: Replace condenser.
