Windshield Glass: Components

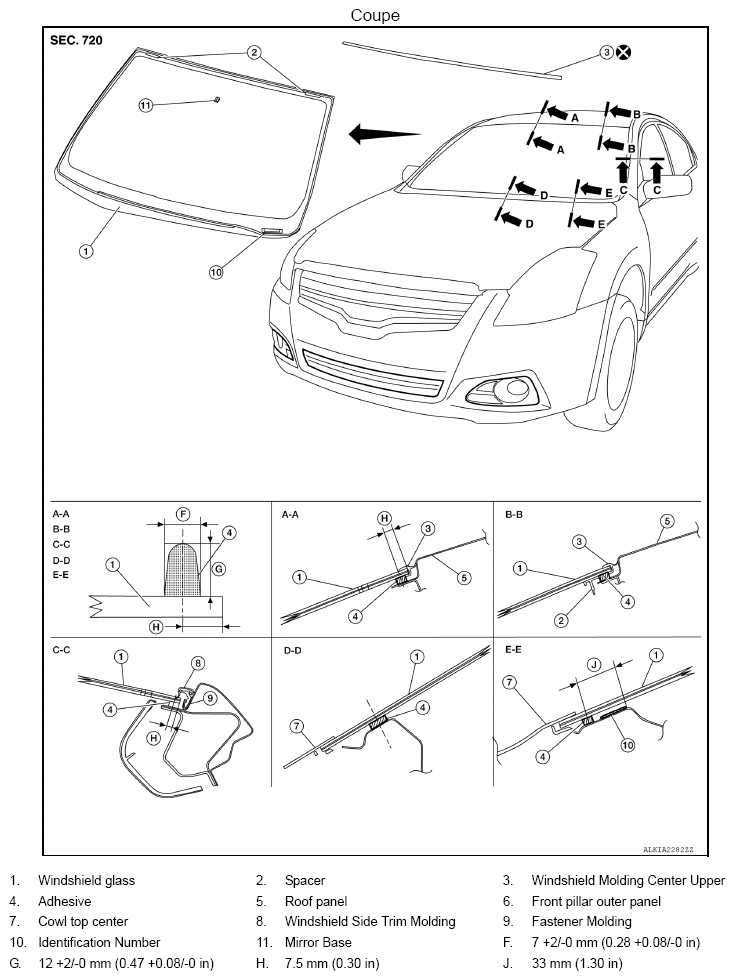

Fig 1: Identifying Windshield Glass Components - Coupe
G08438560Courtesy of NISSAN NORTH AMERICA, INC.

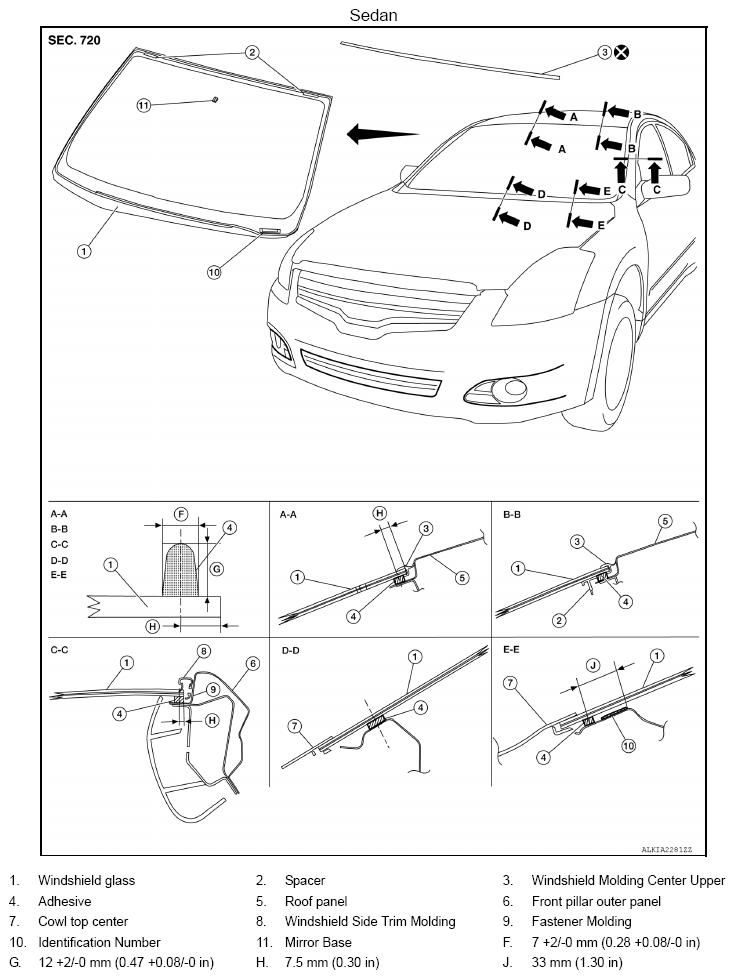

Fig 2: Identifying Windshield Glass Components - Sedan
G08438561Courtesy of NISSAN NORTH AMERICA, INC.
