Home >> Nissan-Datsun >> 2012 >> Altima SL >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass & Window System >> Removal And Installation >> Side Window Glass >> Components

Side Window Glass: Components

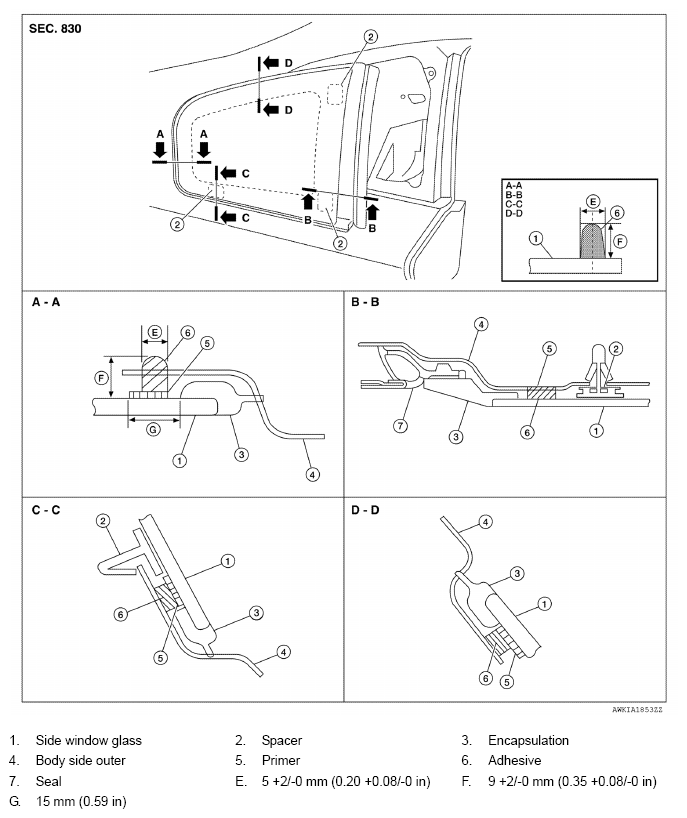

Fig 1: Identifying Side Window Glass Components

G08438586

Courtesy of NISSAN NORTH AMERICA, INC.
